成型轴向电感 Molded Axial Inductor
390 nH 无屏蔽 模制 器 640 mA 300 毫欧最大 轴向
立创商城:
390nH ±10% 640mA 300mΩ
得捷:
FIXED IND 390NH 640MA 300MOHM TH
艾睿:

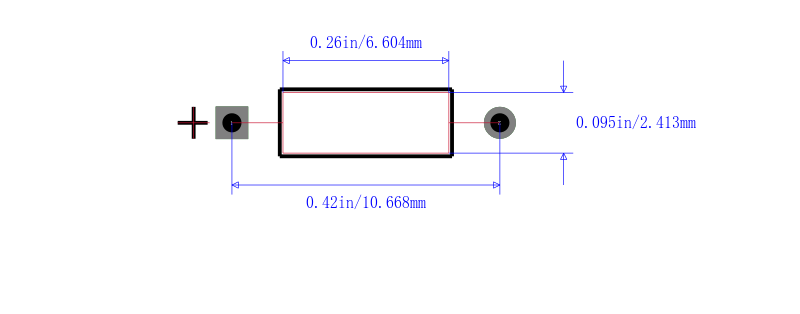

This rf choke 9230-10-RC leaded inductor from Bourns is convenient and easily removable. This leaded inductor has an operating temperature range of -55 °C to 105 °C. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 380M Hz. This product is 6.6 mm long with a diameter of 2.66 mm. It has a tolerance of 10%. It has an inductance of 390n H. This device utilizes wirewound technology. This leaded inductor has a maximum DC current of 640m A with a maximum resistance of 300m Ohm.
Chip1Stop:
Ind RF Choke Molded Wirewound 390nH 10% 25MHz 30Q-Factor Phenolic 640mA AXL Bag
Newark:
# BOURNS JW MILLER 9230-10-RC Axial Leaded High Frequency Inductor, Molded Choke, 9230 Series, 390 nH, 640 mA, 0.3 ohm, ± 10%
Electro Sonic:
RF Choke Molded Wirewound 390nH 10% 25MHz 30Q-Factor Phenolic 640mA 300mOhm DCR AXL Bag
