成型轴向电感 Molded Axial Inductor
RF Choke Molded Wirewound 56uH 10% 2.5MHz 45Q-Factor Ferrite 145mA 5.7Ohm DCR AXL Bag
得捷:
FIXED IND 56UH 145MA 5.7 OHM TH
艾睿:

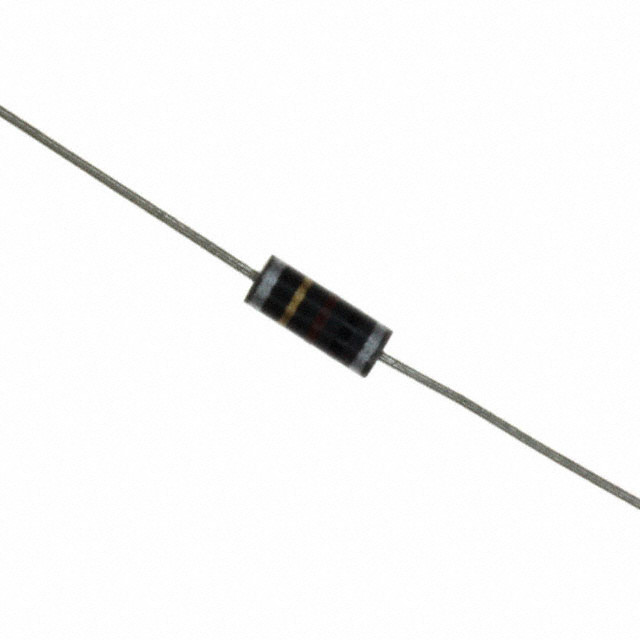

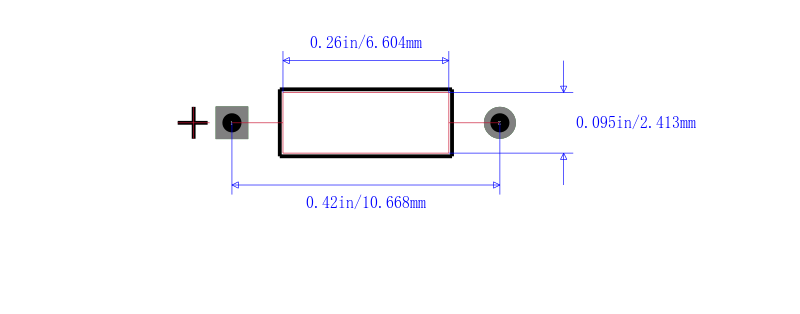

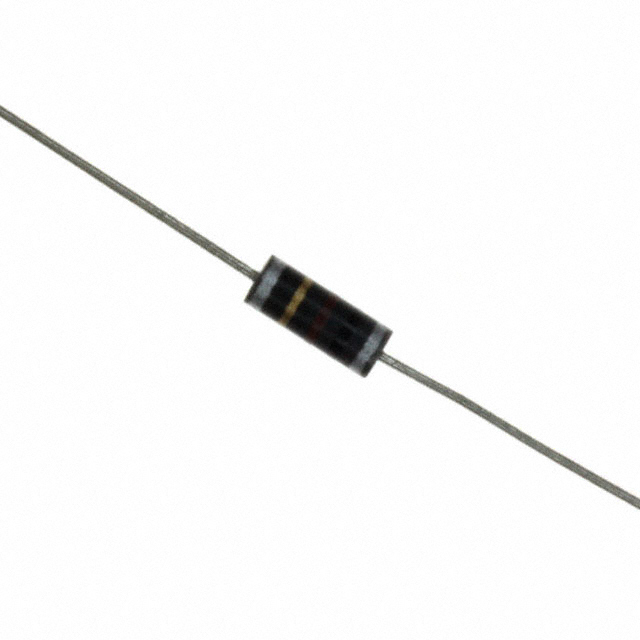

This rf choke 9230-62-RC leaded inductor from Bourns resists changes in electric current passing through it. This leaded inductor has an operating temperature range of -55 °C to 125 °C. It has an inductance of 56u H. It has a tolerance of 10%. This leaded inductor has a maximum DC current of 145m A with a maximum resistance of 5.7 Ohm. This device utilizes wirewound technology. Its test frequency is 2.5M Hz, while its minimum self-resonant frequency is 18M Hz. This product is 6.6 mm long with a diameter of 2.66 mm.
Verical:
RF Choke Molded Wirewound 56uH 10% 2.5MHz 45Q-Factor Ferrite 0.145A 5.7Ohm DCR AXL Bag
Online Components:
RF Choke Molded Wirewound 56uH 10% 2.5MHz 45Q-Factor Ferrite 145mA 5.7Ohm DCR AXL Bag
Electro Sonic:
RF Choke Molded Wirewound 56uH 10% 2.5MHz 45Q-Factor Ferrite 145mA 5.7Ohm DCR AXL Bag
