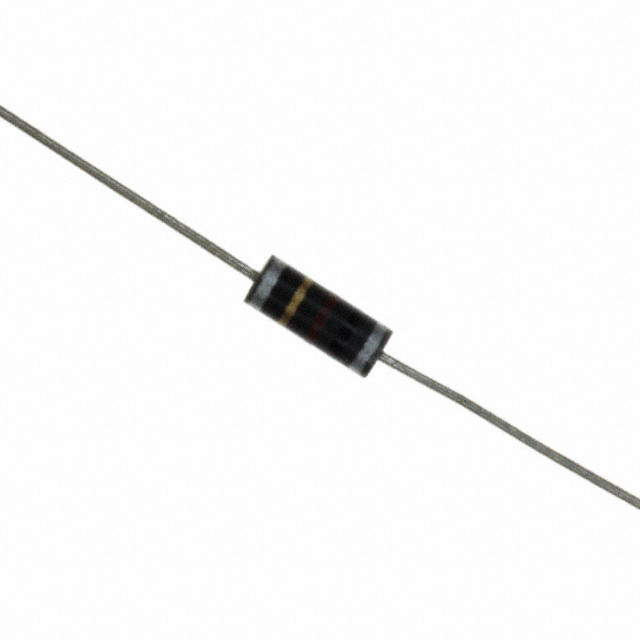

9230-04-RC

成型轴向电感 Molded Axial Inductor

220nH Unshielded Molded Inductor 935mA 140mOhm Max Axial

立创商城:
220nH ±10% 935mA 140mΩ

得捷:
FIXED IND 220NH 935MA 140MOHM TH

艾睿:
This rf choke 9230-04-RC leaded inductor from Bourns is convenient and easily removable. This leaded inductor has an operating temperature range of -55 °C to 105 °C. It has a tolerance of 10%. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 510M Hz. This device utilizes wirewound technology. This leaded inductor has a maximum DC current of 935m A with a maximum resistance of 140m Ohm. This product is 6.6 mm long with a diameter of 2.66 mm. It has an inductance of 220n H.

Chip1Stop:
Ind RF Choke Molded Wirewound 220nH 10% 25MHz 33Q-Factor Phenolic 935mA AXL Bag

TME:
Inductor: axial; THT; 220nH; 935mA; 140mΩ; Ø2.41x6.35mm; ±10%

Newark:
# BOURNS JW MILLER  9230-04-RC  Axial Leaded High Frequency Inductor, Molded Choke, 9230 Series, 220 nH, 935 mA, 0.14 ohm, ± 10%

Electro Sonic:
RF Choke Molded Wirewound 220nH 10% 25MHz 33Q-Factor Phenolic 935mA 140mOhm DCR AXL Bag
