9250A-153-RC

BOURNS JW MILLER  9250A-153-RC  扼流圈, 15UH, 模制, 轴向引线

RF Choke Shielded/Molded Wirewound 15uH 10% 2.5MHz 45Q-Factor Ferrite 315mA 800mOhm DCR AXL Bag

得捷:
FIXED IND 15UH 315MA 800 MOHM TH

e络盟:
扼流圈, 15UH, 模制, 轴向引线

艾睿:

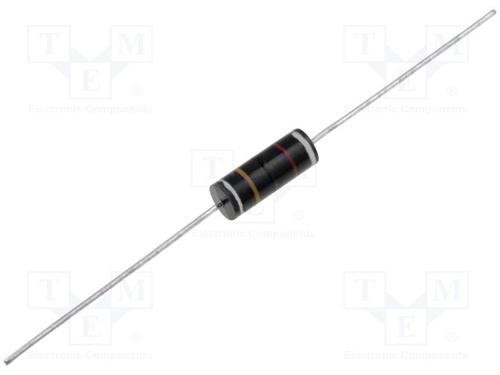

This rf choke 9250A-153-RC leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has an inductance of 15u H. This product is 10.92 mm long with a diameter of 4.36 mm. This leaded inductor has a maximum DC current of 315m A with a maximum resistance of 800m Ohm. This device is made with wirewound technology. Its test frequency is 2.5M Hz, while its minimum self-resonant frequency is 49M Hz. It has a tolerance of 10%.

Chip1Stop:
Ind RF Choke Shielded/Molded Wirewound 15uH 10% 2.5MHz 45Q-Factor Ferrite 315mA AXL Bag

TME:
Inductor: axial; THT; 15uH; 315mA; 800mΩ; Ø4.11x10.41mm; ±10%

Verical:
RF Choke Shielded/Molded Wirewound 15uH 10% 2.5MHz 45Q-Factor Ferrite 0.315A 0.8Ohm DCR AXL Bag

Newark:
# BOURNS JW MILLER  9250A-153-RC  Axial Leaded High Frequency Inductor, Molded Choke, 9250A Series, 15 µH, 315 mA, 0.8 ohm, ± 10%

MASTER:
RF Choke Shielded/Molded Wirewound 15uH 10% 2.5MHz 45Q-Factor Ferrite 315mA 800mOhm DCR AXL Bag

Online Components:
RF Choke Shielded/Molded Wirewound 15uH 10% 2.5MHz 45Q-Factor Ferrite 315mA 800mOhm DCR AXL Bag

Electro Sonic:
RF Choke Shielded/Molded Wirewound 15uH 10% 2.5MHz 45Q-Factor Ferrite 0.315A 0.8Ohm DCR AXL Bag
