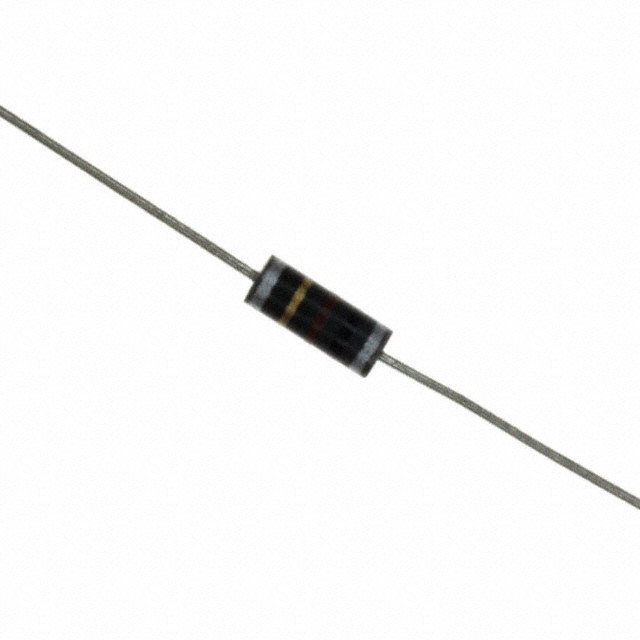

9230-94-RC

BOURNS JW MILLER  9230-94-RC  电感, 轴向引线, 100nH, 1.1A, 10%, 690MHz

**Features:

* **Formerly J.W. Miller Model

* High Q Value

* Inductance Range: 0.1 μH to 1000 μH**

Applications:

**

* Filters

* Output Chokes

立创商城:
100nH ±10% 1.1A 70mΩ

得捷:
FIXED IND 100NH 1.1A 70 MOHM TH

贸泽:
Fixed Inductors 0.1uH 10%

e络盟:
BOURNS JW MILLER  9230-94-RC  电感, 轴向引线, 100nH, 1.1A, 10%, 690MHz

艾睿:
If you need a convenient and easily removable inductor for your electrical design then consider this rf choke 9230-94-RC leaded inductor from Bourns. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 690M Hz. This leaded inductor has a maximum DC current of 1.1 A with a maximum resistance of 70m Ohm. This product is 6.6 mm long with a diameter of 2.66 mm. It has a tolerance of 10%. This device is made with wirewound technology. It has an inductance of 100n H.

Allied Electronics:
Choke; Axial Molded; 0.10uH; 10%; 0.07 Ohm DCR Max

Chip1Stop:
Ind RF Choke Molded Wirewound 100nH 10% 25MHz 40Q-Factor Phenolic 1.1A AXL Bag

TME:
Inductor: axial; THT; 100nH; 1.1A; 70mΩ; Ø2.41x6.35mm; ±10%

Verical:
RF Choke Molded Wirewound 0.1uH 10% 25MHz 40Q-Factor Phenolic 1.1A 0.07Ohm DCR AXL Bag

Newark:
# BOURNS JW MILLER  9230-94-RC  Axial Leaded High Frequency Inductor, Molded Choke, 9230 Series, 100 nH, 1.1 A, 0.07 ohm, ± 10%

MASTER:
RF Choke Molded Wirewound 100nH 10% 25MHz 40Q-Factor Phenolic 1.1A 70mOhm DCR AXL Bag

Online Components:
RF Choke Molded Wirewound 100nH 10% 25MHz 40Q-Factor Phenolic 1.1A 70mOhm DCR AXL Bag

Electro Sonic:
RF Choke Molded Wirewound 100nH 10% 25MHz 40Q-Factor Phenolic 1.1A 70mOhm DCR AXL Bag
