成型轴向电感 Molded Axial Inductor
3.9 µH 无屏蔽 模制 器 350 mA 1 欧姆最大 轴向
立创商城:
3.9uH ±10% 350mA 1Ω
得捷:
FIXED IND 3.9UH 350MA 1 OHM TH
贸泽:
Fixed Inductors 3.9uH 10%
艾睿:

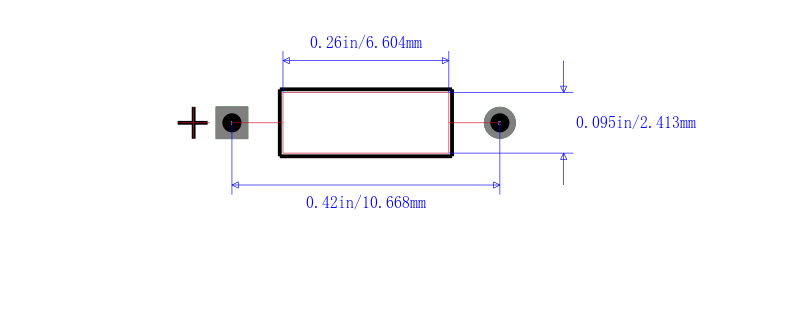

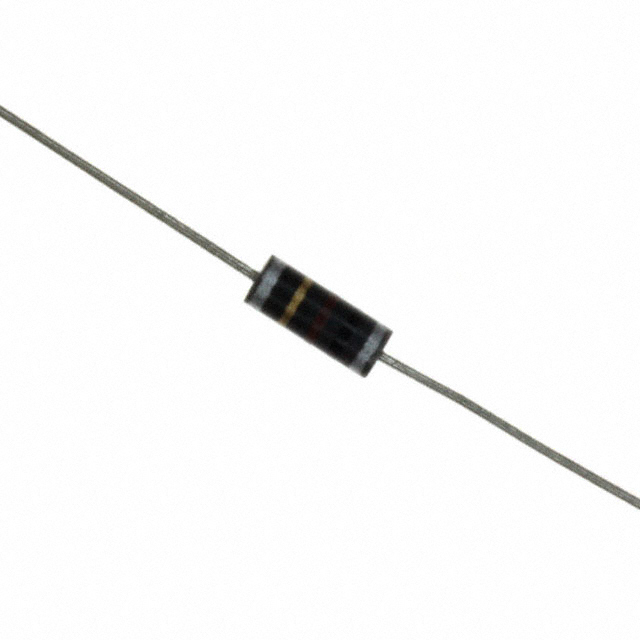

This rf choke 9230-34-RC leaded inductor from Bourns is constructed on a core with concentric leads on opposite ends of the core. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 6.6 mm long with a diameter of 2.66 mm. Its test frequency is 7.9M Hz, while its minimum self-resonant frequency is 82M Hz. This leaded inductor has a maximum DC current of 350m A with a maximum resistance of 1 Ohm. This device utilizes wirewound technology. It has an inductance of 3.9u H. It has a tolerance of 10%.
安富利:
Ind RF Choke Molded 3.9uH 10% 7.9MHz 45Q-Factor Ferrite 350mA AXL Bag
Chip1Stop:
Ind RF Choke Molded Wirewound 3.9uH 10% 7.9MHz 45Q-Factor Ferrite 350mA AXL Bag
TME:
Inductor: axial; THT; 3.9uH; 350mA; 1Ω; Ø2.41x6.35mm; ±10%
Electro Sonic:
RF Choke Molded Wirewound 3.9uH 10% 7.9MHz 45Q-Factor Ferrite 350mA 1Ohm DCR AXL Bag
