成型轴向电感 Molded Axial Inductor
2.7 µH 无屏蔽 模制 器 495 mA 500 毫欧最大 轴向
得捷:
FIXED IND 2.7UH 495MA 500MOHM TH
立创商城:
2.7uH ±10% 495mA 500mΩ
艾睿:

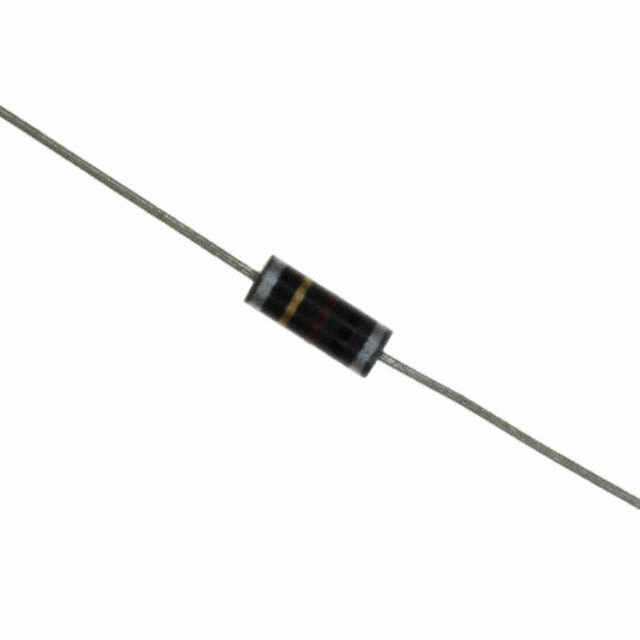

This rf choke 9230-30-RC leaded inductor from Bourns is available for both power applications and RF applications. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 10%. Its test frequency is 7.9M Hz, while its minimum self-resonant frequency is 100M Hz. This product is 6.6 mm long with a diameter of 2.66 mm. This device is made with wirewound technology. It has an inductance of 2.7u H. This leaded inductor has a maximum DC current of 495m A with a maximum resistance of 500m Ohm.
TME:

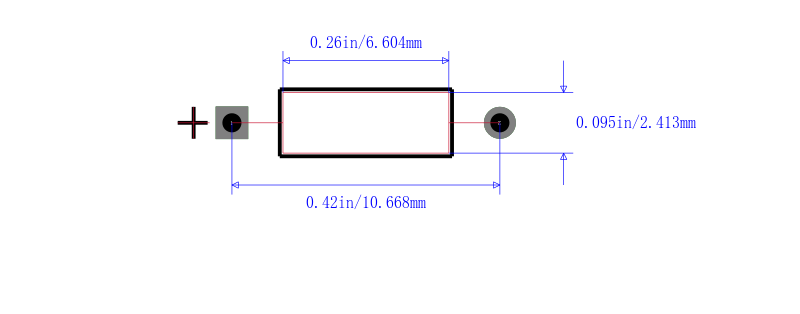

Inductor: axial; THT; 2.7uH; 495mA; 500mΩ; Ø2.41x6.35mm; ±10%
Verical:
RF Choke Molded Wirewound 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 0.495A 0.5Ohm DCR AXL Bag
MASTER:
RF Choke Molded Wirewound 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 495mA 500mOhm DCR AXL Bag
Online Components:
RF Choke Molded Wirewound 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 495mA 500mOhm DCR AXL Bag
Electro Sonic:
RF Choke Molded Wirewound 2.7uH 10% 7.9MHz 37Q-Factor Ferrite 495mA 500mOhm DCR AXL Bag
