91A1A-B28-A15L

BOURNS  91A1A-B28-A15L  旋转电位器, 金属陶瓷, 91系列, 10 kohm, 线性, 1 转, 500 mW, 面板

16 mm 91 系列

Bourns 91 系列为单转、旋转线性电位计。

**特点和优势：**

提供各种引脚输出配置

一件式轴和转子总成

可安装面板和印刷电路板

导电塑料元件

线性和音频（对数）输出轨道选项

长机械寿命（10 万次循环）

塑料或金属开槽轴

### 随附

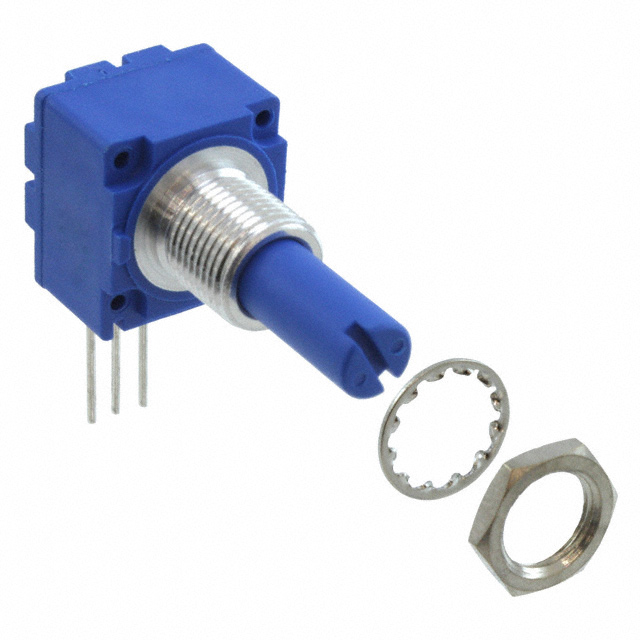

金属锁紧垫圈和螺母。

欧时:
Bourns 91 系列 10kΩ ±10% 旋转 电位器 91A1A-B28-A15L, 1W, 6.35 mm 直径轴, ±150ppm/°C, 面板安装

艾睿:
Res Cermet POT 10K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 34.93 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Allied Electronics:
Potentiometer; Rotary; 10K Ohm; 5/8" SQ ST; 10%

安富利:
Res Cermet POT 10K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 34.93 X 15.88 X 17.47mm Pin Panel Mount/Through Hole

Chip1Stop:
Res Cermet POT 10K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 34.93 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

TME:
Potentiometer: shaft; single turn; 10kΩ; 1W; ±10%; 6.35mm; linear

Verical:
Res Cermet POT 10K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 34.93 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Newark:
Rotary Potentiometer, Cermet Element, 10 kohm, 2 W, ± 10%, 91 Series, 1 Turns, Linear

MASTER:
Res Cermet POT 10K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 34.93 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Online Components:
Res Cermet POT 10K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 34.93 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Electro Sonic:
Res Cermet POT 10K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 34.93 X 15.88 X 17.46mm Pin Panel Mount/Through Hole
