连接器

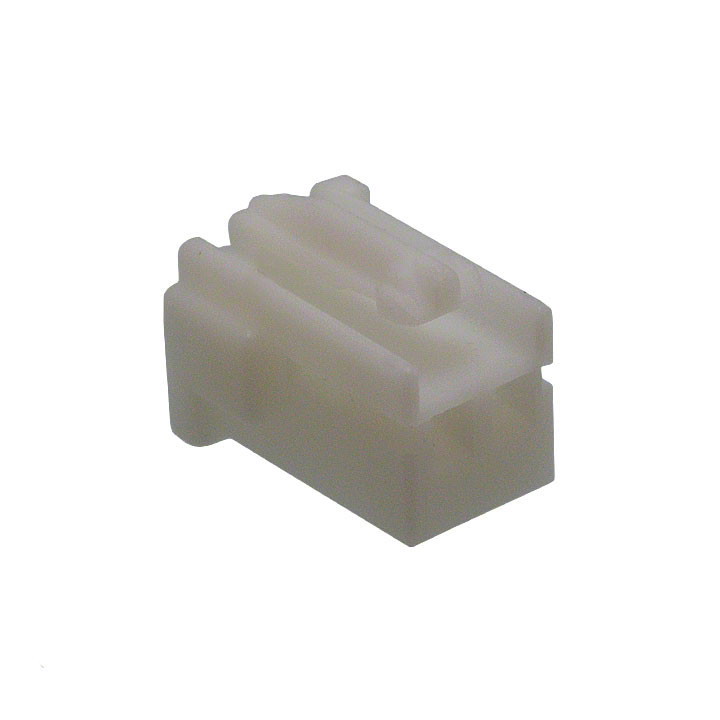

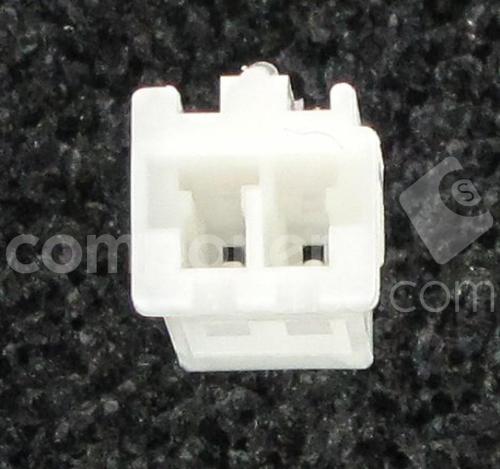

2.5 SIGNAL D/LOCK PLUG HSG 2P
Product Highlights
Housing
Plug
Number of Positions = 2
2.50 mm Centerline
得捷:
CONN PLUG HSG 2POS 2.50MM
立创商城:
2.5mm 1x2P
艾睿:
Whether your needs are small or large, this 917686-1 discrete wire housing from TE Connectivity can help you in making a secure linkage between a board and socket. This PL connector has 2 PL contacts. This is a 1-row connector. It has a plug type gender. It has a straight body orientation. It has a maximum voltage rating of 50 VDC|50VAC. Its pitch is 2.5 mm. This device has a maximum current rating of 3 A/contact. This rectangle connector has an operating temperature of -30 to 105 °C. 917686-1 is housed in natural nylon. This product is 7.5 mm long, 8.05 mm tall and 11 mm deep.
安富利:
Conn Housing PL 2 POS 2.5mm Crimp ST
Chip1Stop:
Conn Housing PL 2 POS 2.5mm Crimp ST
Verical:
Conn Housing PL 2 POS 2.5mm Crimp ST Cable Mount Natural Bag/Box
MASTER:
2.5mm SIGNAL DBL-LOCK 2P PLUG HSG.
Powell:
2.5mm Signal Double Lock Connector
Online Components:
2.5 SIGNAL D/LOCK PLUG HSG 2P
Electro Sonic:
2.5 SIGNAL D/LOCK PLUG HSG 2P
触点数 2
极性 Male
排数 1
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -30 ℃
引脚数 2
封装 P=2.5mm
长度 7.5 mm
宽度 11 mm
高度 11 mm
封装 P=2.5mm
外壳颜色 Natural
颜色 Natural
工作温度 -30℃ ~ 105℃
外壳材质 Nylon 6/6
产品生命周期 Active
包装方式 Bulk
制造应用 Signal, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
