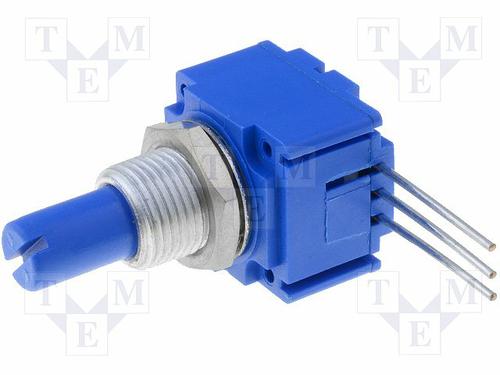

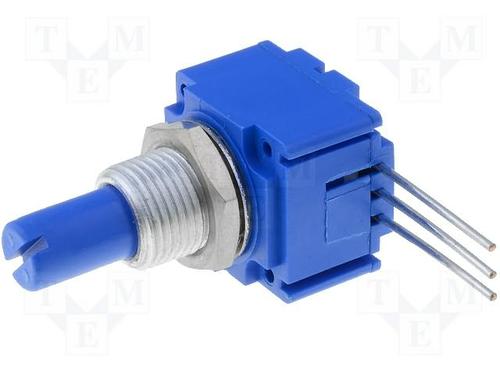

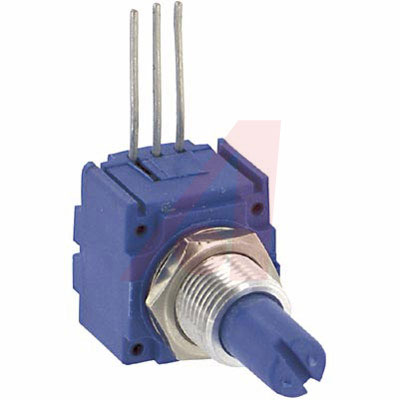

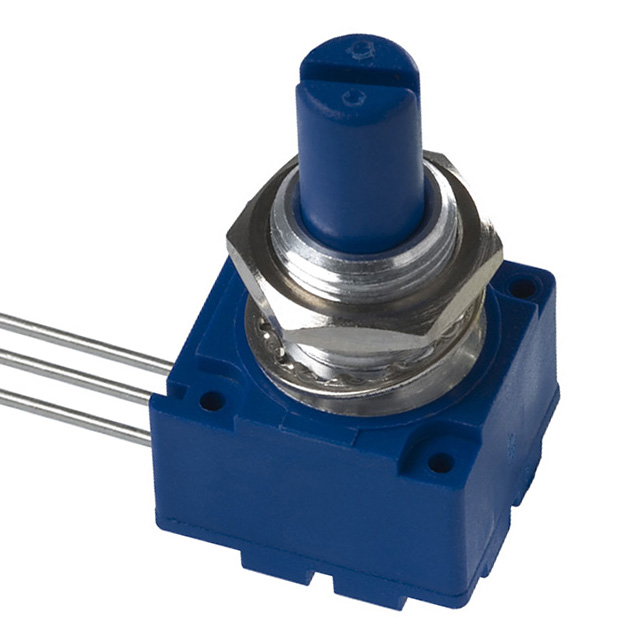

91A1A-B24-B15L

BOURNS  91A1A-B24-B15L  旋转电位器, 导电塑料, 91系列, 10 kohm, 线性, 1 转, 1 W, 面板

16 mm 91 系列

Bourns 91 系列为单转、旋转线性电位计。

**特点和优势：**

提供各种引脚输出配置

一件式轴和转子总成

可安装面板和印刷电路板

导电塑料元件

线性和音频（对数）输出轨道选项

长机械寿命（10 万次循环）

塑料或金属开槽轴

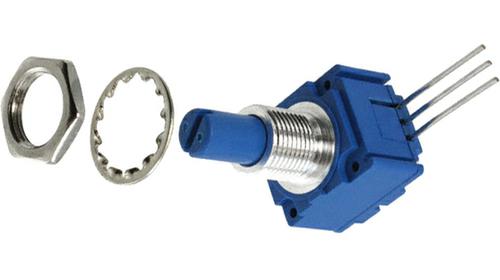

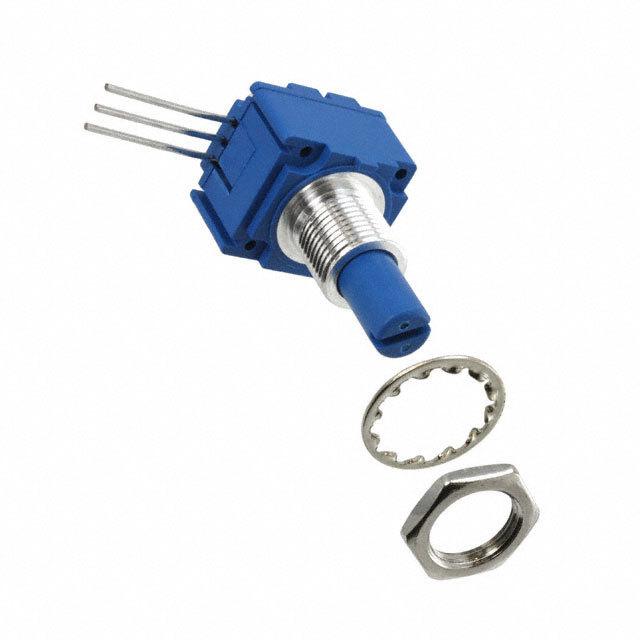

### 随附

金属锁紧垫圈和螺母。

欧时:
Bourns 91 系列 ±20% 旋转 电位器 91A1A-B24-B15L, 0.5W, 6.35 mm 直径轴, ±1000ppm/°C, 面板安装

艾睿:

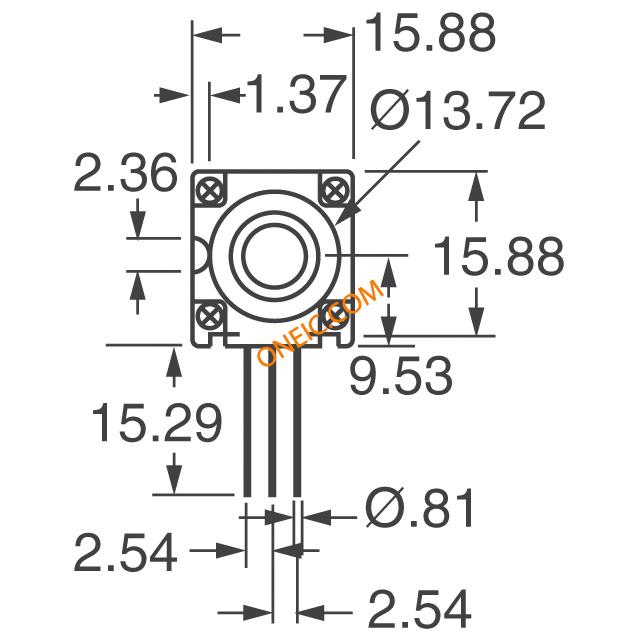

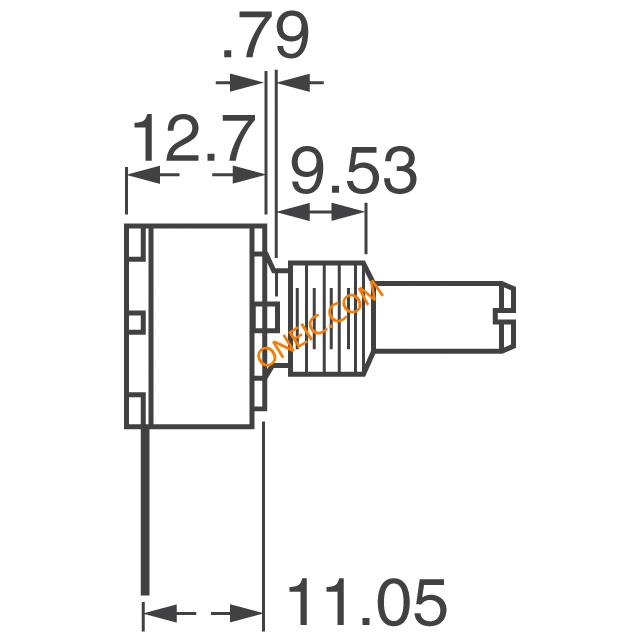

Res Conductive Plastic POT 10K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Allied Electronics:
Pot; Cnd Pl; Rest 10 Kilohms; Panel; 1 Turn; Linear; Pwr-Rtg 0.5W; Shaft Dia 0.25In

安富利:
Res Conductive Plastic POT 10K Ohm 20% 1/2W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.47mm Pin Panel Mount/Through Hole

Chip1Stop:
Res Conductive Plastic POT 10K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

TME:
Potentiometer: shaft; single turn; 10kΩ; 1W; ±20%; 6.35mm; linear

Verical:
Res Conductive Plastic POT 10K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Newark:
Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 W, ± 20%, 91 Series, 1 Turns, Linear

MASTER:
Res Conductive Plastic POT 10K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Online Components:
Res Conductive Plastic POT 10K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole

Electro Sonic:
Res Conductive Plastic POT 10K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole
