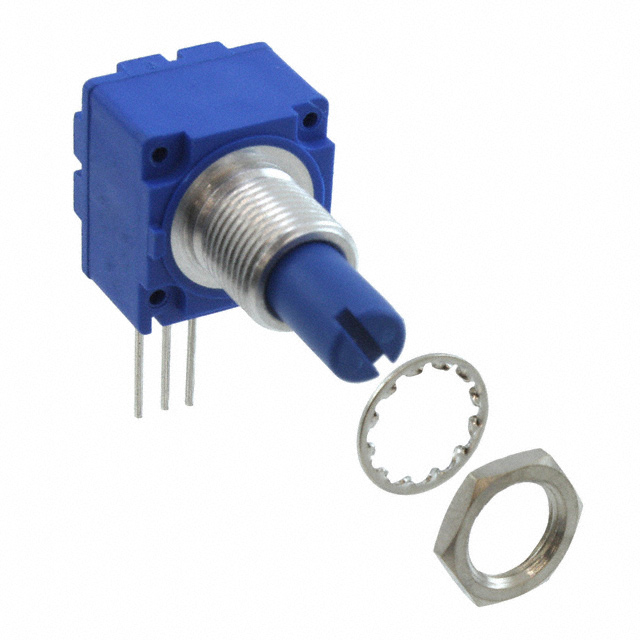

Res Conductive Plastic POT 500KΩ 20% 0.5W1/2W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.47mm Pin Panel Mount/Through Hole
500k 欧姆 1 组 线性 面板安装 电位计 无 1 匝 导电塑料 1W PC 引脚
得捷:
POT 500K OHM 1W PLASTIC LINEAR
艾睿:
Res Conductive Plastic POT 500K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole
安富利:
Res Conductive Plastic POT 500K Ohm 20% 1/2W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.47mm Pin Panel Mount/Through Hole
Verical:
Res Conductive Plastic POT 500K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole
Online Components:
Res Conductive Plastic POT 500K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole
AMEYA360:
POT 500K OHM 5/8" SQ 1W PLAS
Electro Sonic:
Res Conductive Plastic POT 500K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole
容差 ±20 %
额定功率 1 W
电阻 500 kΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 Square - 0.625" L x 0.500" W x 0.687" H 15.88mm x 12.70mm x 17.45mm
高度 17.46 mm
封装 Square - 0.625" L x 0.500" W x 0.687" H 15.88mm x 12.70mm x 17.45mm
工作温度 -40℃ ~ 125℃
温度系数 ±1000 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
