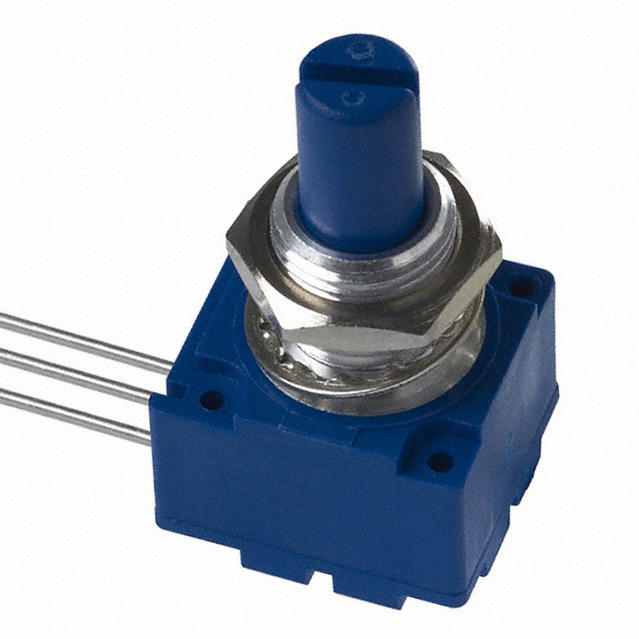

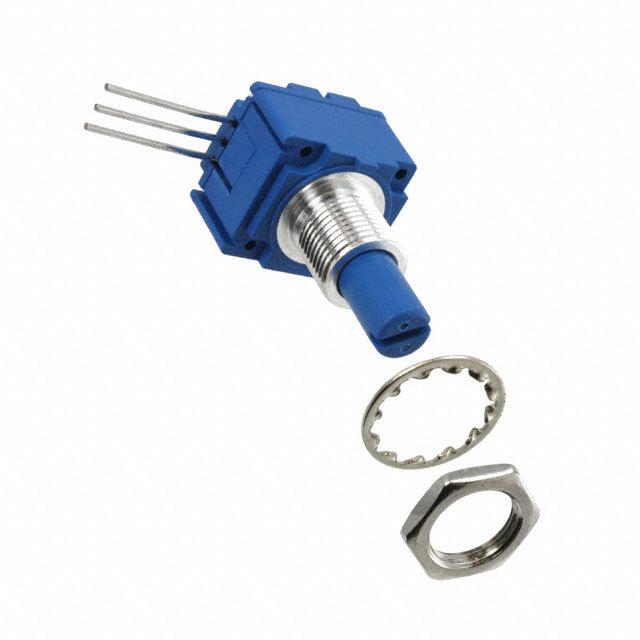

Res Cermet POT 10KΩ 10% 2W 1Elec/1MechTurn 4mm 34.7 X 15.88 X 17.47mm Pin Panel Mount/Through Hole
This potentiometer from Bourns is your solution to resistance calibration in a circuit. This product has a resistance value of 10K Ohm. This durable part has a power rating of 2 W. Its temperature coefficient is ±150 ppm/°C. It has a tolerance of 10%. This part has an operating temperature of -40 to 125 °C. The 91U1A-T22-A15L part has a pin termination style. This product is 34.7 mm long, 17.46 mm tall and 15.88 mm deep. This device is made with cermet technology.
容差 ±10 %
额定功率 2 W
电阻 10 KΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 Square - 0.625" L x 0.625" W x 0.500" H 15.88mm x 15.88mm x 12.70mm
长度 34.7 mm
宽度 15.88 mm
高度 17.46 mm
封装 Square - 0.625" L x 0.625" W x 0.500" H 15.88mm x 15.88mm x 12.70mm
工作温度 -40℃ ~ 125℃
温度系数 ±150 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
