95 32 320

95 32 320图片1
95 32 320图片2
95 32 320图片3
95 32 320图片4
95 32 320图片5
95 32 320图片6
95 32 320图片7
95 32 320图片8
95 32 320概述

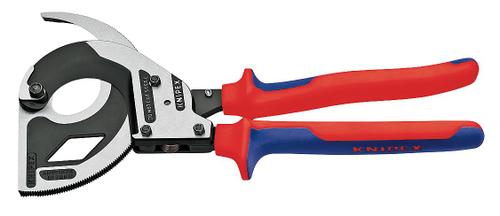

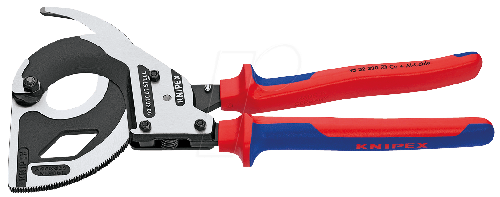

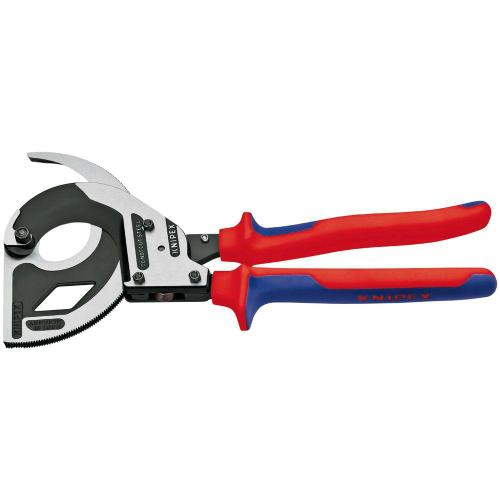

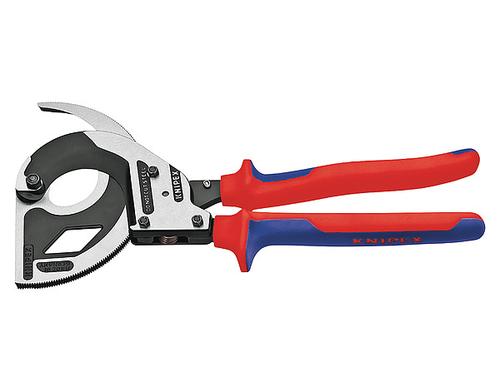

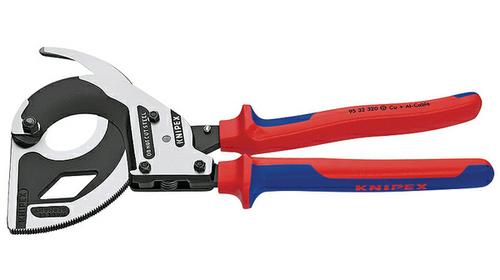

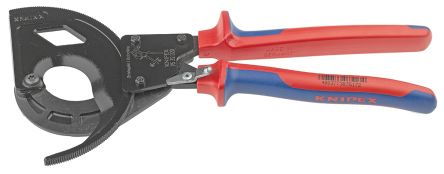

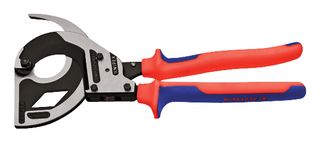

320mm 紧凑设计特别适用在狭小区域中使用。设计用于切割铜制和铝制单导线以及多股电缆 可切割高达 60mm 的铜电缆和铝电缆 高级特殊工具钢构造 经铸造和油淬硬化,具有硬化切削刃 可单手操作 带支架的固定手柄用于在切割时将切割器置于表面上 重量 800g ### 电缆切割钳/断线钳

* Easy handling due to low weight 800 g and compact 320 mm length - usable in confined areas

.
Cutting through copper and aluminium cables diameters of upto 60mm in one-hand & two-hand operation
.
Hardened cutting edges, precisely ground, cut smoothly and neatly without crushing
.
For cutting copper and aluminium single conductors as well as multiple stranded cables
.
Innovative three-stage ratchet-drive with high leverage for easy cutting in one and two-hands
.
Fixed handle with support area for putting down the pliers when cutting
.
High-grade special tool steel, forged, oil-hardened
95 32 320中文资料参数规格
外形尺寸

长度 320 mm

符合标准

RoHS标准 Non-Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买95 32 320
型号: 95 32 320
制造商: Knipex
描述:320mm 紧凑设计特别适用在狭小区域中使用。 设计用于切割铜制和铝制单导线以及多股电缆 可切割高达 60mm 的铜电缆和铝电缆 高级特殊工具钢构造 经铸造和油淬硬化,具有硬化切削刃 可单手操作 带支架的固定手柄用于在切割时将切割器置于表面上 重量 800g ### 电缆切割钳/断线钳
替代型号95 32 320
型号/品牌 代替类型 替代型号对比

95 32 320

Knipex

当前型号

当前型号

95 31 250

Knipex

功能相似

95 32 320和95 31 250的区别
