930757100

HIRSCHMANN TEST AND MEASUREMENT  930757100  带护罩面板插座, 4mm 黑色 5只/包

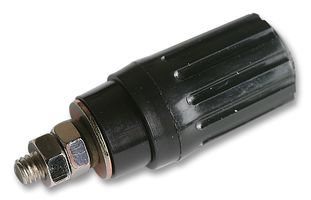

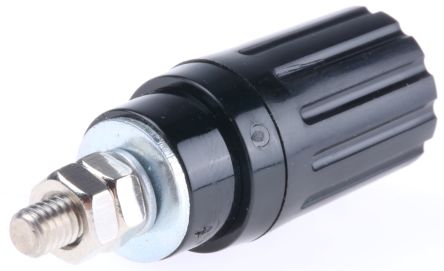

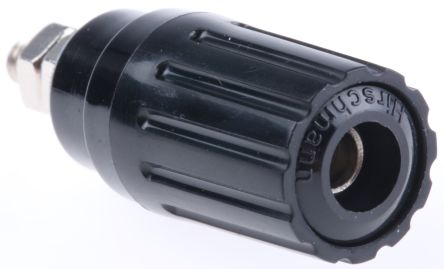

The is a 4mm black Socket, 35A 30VAC/60VDC rated, pole terminal, captive insulated head, which is held under constant pressure against the insulated rings by a spring. 4mm diameter nickel-plated, brass threaded bolt with 2mm diameter transverse hole. This PKI 100 socket used for non-rotating installation in switch panels and equipment chassis with wall thickness up to 3.5mm, provide quick and uncomplicated connections.

.

Category I measurement according to IEC 61010 standard

.

Screw type mounting

.

-25 to +100°C Rated temperature range

.

PA housing

.

2mR Contact resistance
