977-025-010R031概述

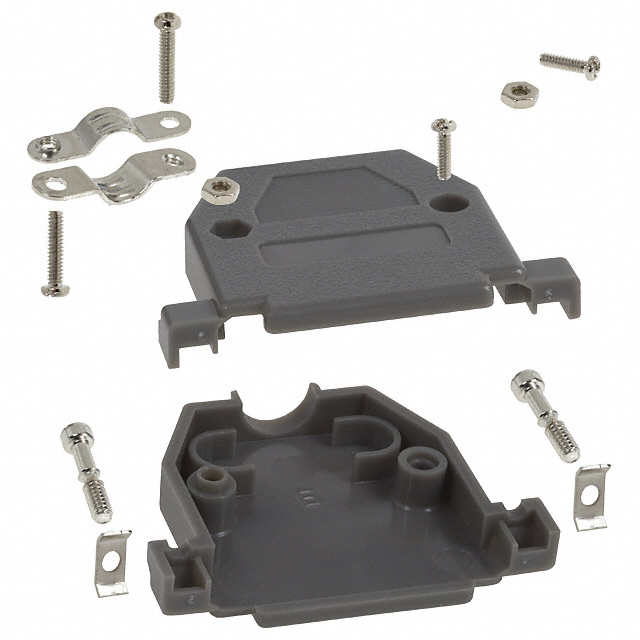

NORCOMP  977-025-010R031.  连接器后壳, D-SUB, 尺寸 DB, ABS

The from Norcomp is a 977 series grey colour plastic straight top entry D-sub backshell with 25 positions. This backshell has perimeter sealing clips for secure sealing. Internal strain relief eliminates the need for grommets.

.
UL94-HB rated high temperature ABS acrylonitrile butadiene styrene material
.
Operating temperature range from -35°C to 85°C
.
Easy assembly reduces manufacturing cost
977-025-010R031中文资料参数规格
技术参数

针脚数 25

安装角度 180 °

外形尺寸

长度 55.0 mm

宽度 44.5 mm

高度 16.4 mm

物理参数

颜色 Gray

材质 Acrylonitrile Butadiene Styrene ABS

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买977-025-010R031
型号: 977-025-010R031
制造商: NorComp
描述:NORCOMP  977-025-010R031.  连接器后壳, D-SUB, 尺寸 DB, ABS
替代型号977-025-010R031
型号/品牌 代替类型 替代型号对比

977-025-010R031

NorComp

当前型号

当前型号

977-025-010-031

NorComp

完全替代

977-025-010R031和977-025-010-031的区别
