压接触点适合与 .140 MATE-N-LOCK 引脚和插座外壳一起使用双锁定片，确保最佳触点稳定性 黄铜或磷青铜 ### 注不建议插入工具用于.140 MATE-AND-LOCK 触点，因为触点手柄大于电线规格### TE Connectivity 140 MATE-N-LOCK 外壳内部设备连接线对线，用于散线 6.09mm .24 in 节距，触点接受电线尺寸范围 20 - 10 AWG .5 - 5 mm²完全极化尼龙外壳 低插入/拔出力 触点完全保护在外壳中 有关合适的触点，请参见典型库存号 660-0952 引脚触点、660-0978 插座触点

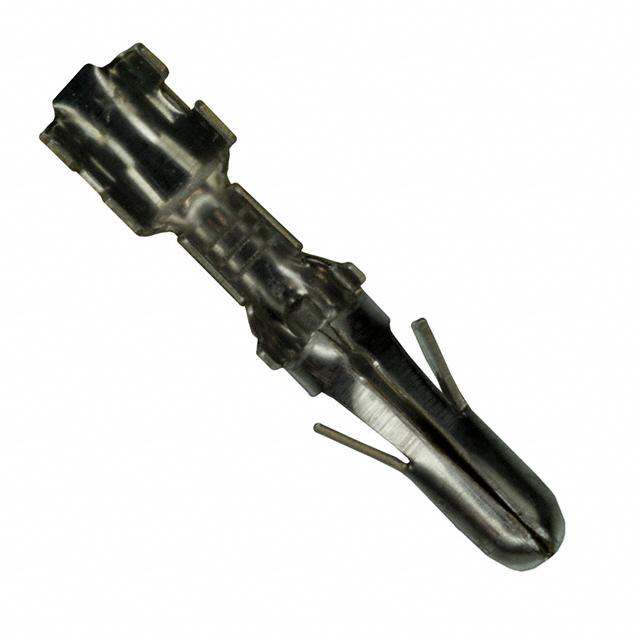

压接触点
适合与 .140 MATE-N-LOCK 引脚和插座外壳一起使用
双锁定片，确保最佳触点稳定性
黄铜或磷青铜
### 注
不建议插入工具用于.140 MATE-AND-LOCK 触点，因为触点手柄大于电线规格
### 140 MATE-N-LOCK 外壳
内部设备连接线对线，用于散线 6.09mm .24 in 节距，触点接受电线尺寸范围 20 - 10 AWG .5 - 5 mm²
完全极化尼龙外壳
低插入/拔出力
触点完全保护在外壳中
有关合适的触点，请参见典型库存号 660-0952 引脚触点、660-0978 插座触点
得捷:
CONN PIN 14-20AWG CRIMP TIN
欧时:
TE Connectivity 0.140 Mate-N-LOK 系列 公 压接端子触点 925715-2, 镀锡 磷铜触芯, 20AWG 至 14AWG
立创商城:
925715-2
e络盟:
触芯, Commercial MATE-N-LOK Series, 公, 压接, 14 AWG, 镀锡触芯, AMP商用MATE-N-LOK系列外壳连接器
艾睿:
Make the perfect wired connection with this 925715-2 connector contact from TE Connectivity, a simple and effective form of connection binding. It has a straight body orientation. This device has a maximum current rating of 28 A. This has a Connector Headers and PCB Receptacles connector. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It uses the crimp termination method. This product is 25.5 mm long and 5.3 mm. Its wire is 14-20 AWG.
Allied Electronics:
Commercial MATE-N-LOK PCB Conn Contact, Male, Crimp, Tin Plating 20 to 14 AWG
安富利:
Contact PIN Crimp ST Cable Mount Strip
Verical:

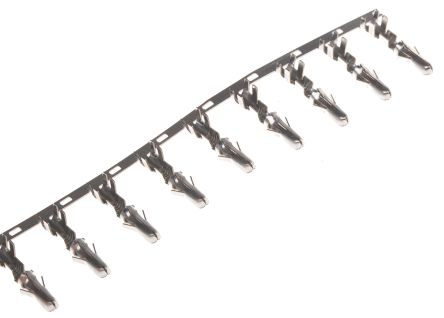

Contact PIN Crimp ST Cable Mount 14-20AWG T/R
Powell:
.240, .295 Centerline, 250 v, 28 A max. .140" MATE-N-LOK
Electro Sonic:
MATENLOK PIN .140
