99.01.0.024.98

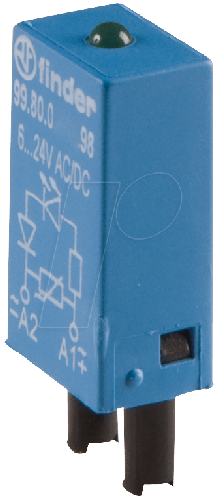

FINDER  99.01.0.024.98  继电器模块, 压敏电阻+LED, 6-24VAC/DC

The is a green LED + Varistor Module for 99 series coil indication and EMC suppression modules. The reverse voltage peaks of the relay coil are limited by the varistor to approximately 2.5 times the nominal voltage of the supply. When using DC coils it is essential that positive is connected to terminal A1. The relay release time increases insignificantly.

.

6 to 24V AC/DC Operating range
