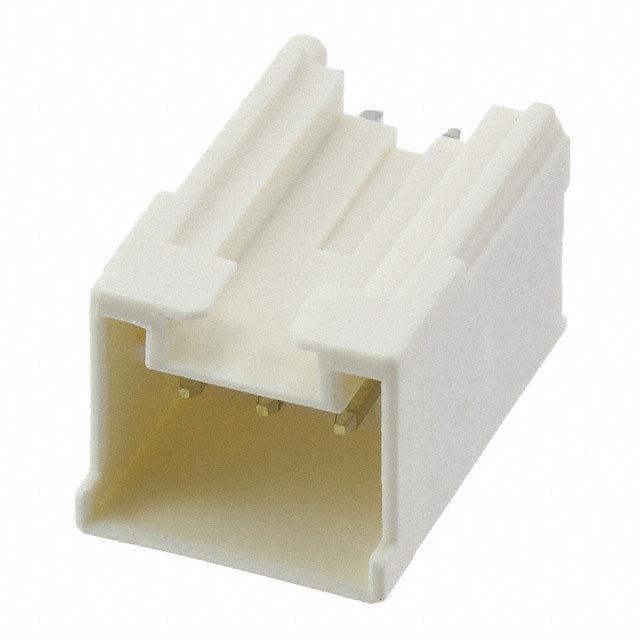

917723-1

Conn Shrouded Header HDR 3POS 2.5mm Solder ST Thru-Hole Loose Piece

* Connector for signal circuits with one row of contacts on 2.5 mm centerline * Wire-to-board and wire-towire connectors, consisting of plug and cap housings for wire termination and PC board-mount post headers * Mounted to plug and cap housings for wire application, double lock plate provides for positive loading of contacts in the housing. It also helps contacts mate completely * Double lock plate is contained within the plug and cap housing completely, which provides neat overall appearance * Accepts 26-20 AWG wire e.g. UL 1007, 1061, 1571,etc. with insulation diameters of up to 1.8 mm * PC board-mount post header is available in two styles: standard profile and high profile * High-profile post header has locking feature at location fit to resin coating, which is applied onto the board for waterproof protection as in home appliances. It does not hamper mating and locking of post header with plug housing * Locking structure is innerlock type and has a clean surface * Solder tail section of post header is provided with kinks to retain the header firmly on PC board during soldering * Radial tape-mounted version of post header is also available that is applicable to radial mounting machines
