AMP FROM TE CONNECTIVITY 9-146253-0 针座

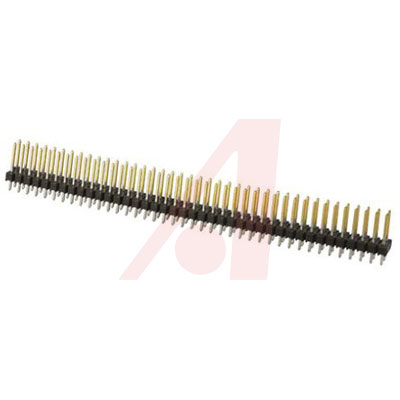

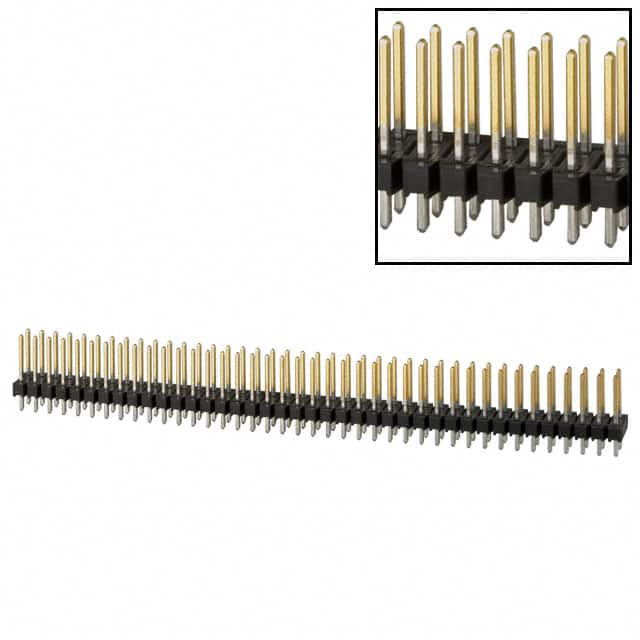

** AMPMODU Mod II 2.54mm Double Row Unshrouded Breakaway Headers**
A range of AMPMODU Mod II unshrouded vertical and right angle PCB mount double row breakaway header connectors with a 2.54 x 2.54mm centerline, 0.64mm square posts and solder tails which can be broken to the desired number of postions. These AMPMODU Mod II unshrouded breakaway headers have black or green 94V-0 rated thermoplastic housings and are available with a choice of contact platings and as PCB through hole or SMT mounting. Part numbers X-146269-X have PCB retention tails
触点数 80
极性 Male
触点电镀 Gold, Tin over Nickel
额定电流 3 A
绝缘电阻 5000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 80
安装角度 180 °
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 30 VAC
安装方式 Through Hole
引脚间距 2.54 mm
长度 101 mm
宽度 2.29 mm
高度 10.37 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
材质 Thermoplastic
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
