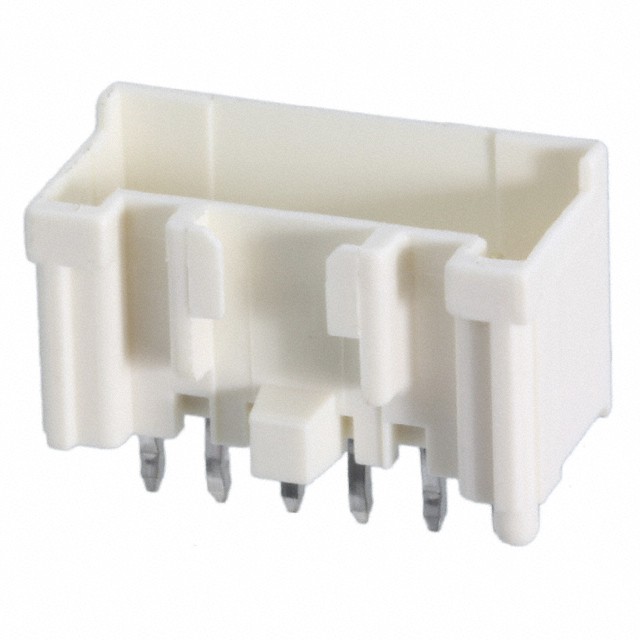

917784-1

TE Connectivity Power Double-Lock 系列TE Connectivity Power Double Lock 连接器设计紧凑，用于电源电路，并且十分适用于电冰箱、空调、洗衣机、气体设备、复印机和自动贩卖机中的布线。 这些连接器可以通过向外壳插入电线端接压接咬合触点，而单独使用。 但是为了实现正面安装，这些连接器安装有他们可以配备有双锁盖板，有助于防止/阻止触点的半途匹配。

双锁管座

### Power Double-Lock 系列

TE Connectivity Power Double Lock 设计紧凑，用于电源电路，并且十分适用于电冰箱、空调、洗衣机、气体设备、复印机和自动贩卖机中的布线。 这些连接器可以通过向外壳插入电线端接压接咬合触点，而单独使用。 但是为了实现正面安装，这些连接器安装有他们可以配备有双锁盖板，有助于防止/阻止触点的半途匹配。

得捷:
CONN HEADER VERT 6POS 2.5MM

欧时:
TE Connectivity PCB 针座 Signal Double Lock 系列 6路 2.5mm节距 1排 直向 917784-1, 焊接端接, 3A, 通孔

立创商城:
6 位 接头 连接器 0.098"2.50mm 通孔 锡

艾睿:
Support physical configuration options for jumper posts by mounting this wire to board 917784-1 header connector from TE Connectivity. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with pre-tin. It has a header type gender. This is a 1-row connector. Its pitch is 2.5 mm. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. This connector has an operating temperature of -30 to 105 °C. 917784-1 is housed in natural nylon 6/6. This product is 17.5 mm long, 9.8 mm tall and 8.2 mm deep. It uses the solder termination method.

Allied Electronics:
Signal Double Lock SER; 2.5mm Pitch 6Way1 Row Straight PCB Header; Solder Term; 3A

安富利:
Conn Wire to Board HDR 6 POS 2.5mm Solder ST Thru-Hole Loose Piece

Chip1Stop:
Conn Wire to Board HDR 6 POS 2.5mm Solder ST Thru-Hole Bag

Verical:
Conn Shrouded Header HDR 6 POS 2.5mm Solder ST Thru-Hole Bag/Box

Powell:
2.5mm Signal Double Lock Connector

Electro Sonic:
2.5 S.D.L POST HDR ASY 6P STD
