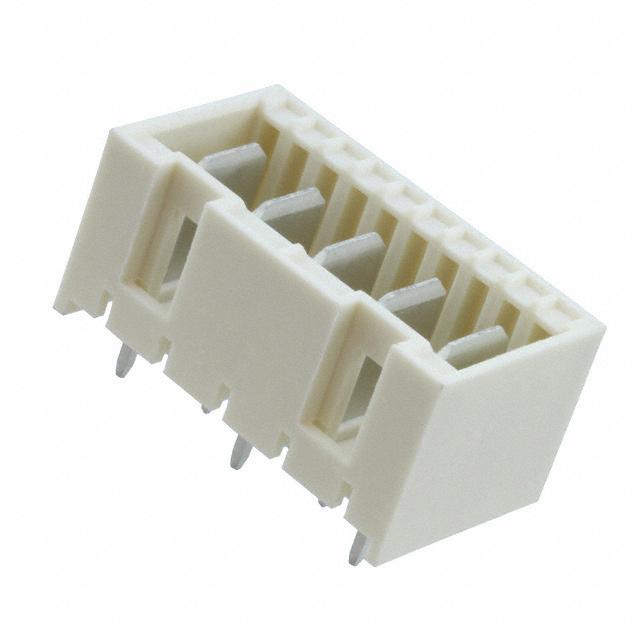

9-1971845-5

集管和线壳 5P RAST 5 TAB HEADER THV

针座连接器 通孔 5 位置 0.197"（5.00mm）

得捷:
CONN HEADER VERT 5POS 5MM

贸泽:
集管和线壳 5P RAST 5 TAB HEADER THV

艾睿:
Connecting an electronic device to a power supply has never been easier with this 9-1971845-5 power connector from TE Connectivity. This HDR connector&s;s 5 contacts that are made out of copper alloy and plated with tin. It has a straight body orientation. Its pitch is 5 mm. It has a header type gender. It has a maximum voltage rating of 250 VAC. This connector has a single port. 9-1971845-5 is housed in nylon 6/6. This device has a maximum current rating of 10 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 27.3 mm long, 12.8 mm tall and 14.9 mm deep. Its 10 terminals use the solder termination method.

Verical:
Conn Power HDR 5 POS 5mm Solder ST Thru-Hole 10 Terminal 1 Port Box/Tube

MASTER:
RAST 5 TAB HEADER ASSY DIN STYLE, TH, VERTICAL
