4 mm laboratory range, VQ20 Fully Mating ConnectorL. 59.5 mm Fully mating connector, hardwearing, flexible insulating sleeve with through hole The tapering ferrule end prevents the conductor from kinking. Screw connection up to maximum conductor cross-section of 1.5 mm2. Nickel-plated brass contact material. Connection type: | Screws ---|--- Operating current max.: | 16 A Volume resistance: | 3 mΩ permitted Temperature range: | -25 °C → +70 °C ### 4 mm Hirschmann技术参数 --- 触点材料 | 镀镍黄铜 额定电压 | 60Vdc（除非另有说明） 额定电流 | 16A（除非另有说明）

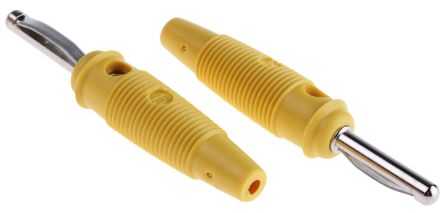

The is a yellow cable-mount fully mating Connector with shatter-proof and a flexible insulated sleeve. The tapering sleeve end with transverse hole also serves as kinking protection for the lead. It has screw connection up to maximum cable cross-section of 1.5mm². It is made of PVC-P housing with nickel-plated brass pin spring loaded contacts.
- .
- 3mR Contact resistance
- .
- -25 to 70°C Temperature range
