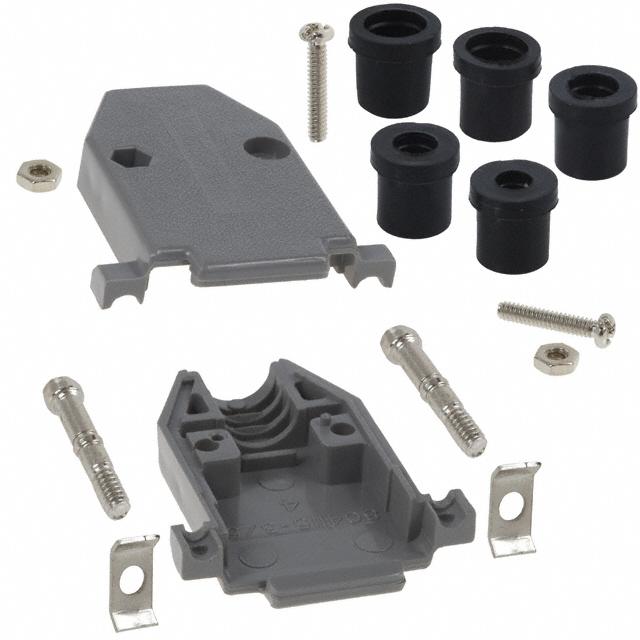

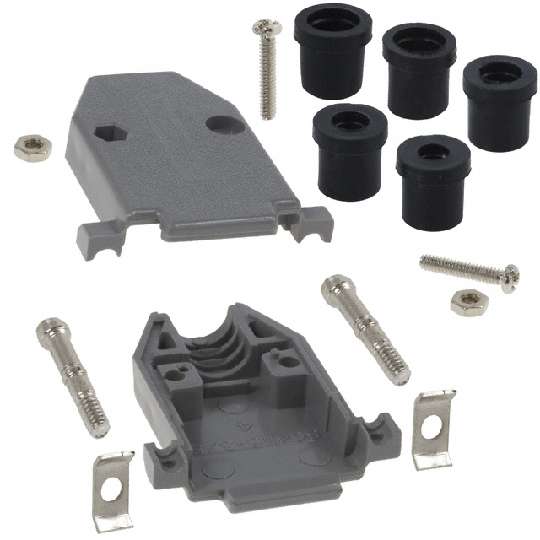

NORCOMP  979-015-010R031.  连接器后壳, D-SUB, 尺寸 DA, ABS

The from Norcomp is a 979 series grey colour plastic straight/top entry D-sub backshell with 15 positions. This backshell has perimeter sealing clips for secure sealing. Strain Relief design ensures secure fit no matter what cable diameter is used.

.
UL94-HB rated high temperature ABS acrylonitrile butadiene styrene material
.
Operating temperature range from -45°C to 120°C
.
Cost effective backshell
.
Easy assembly reduces manufacturing cost
979-015-010R031中文资料参数规格
技术参数

易燃性等级 UL 94 HB

针脚数 15

安装角度 180 °

外形尺寸

长度 39.5 mm

宽度 48.1 mm

高度 17.0 mm

物理参数

颜色 Gray

材质 Acrylonitrile Butadiene Styrene ABS

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17
