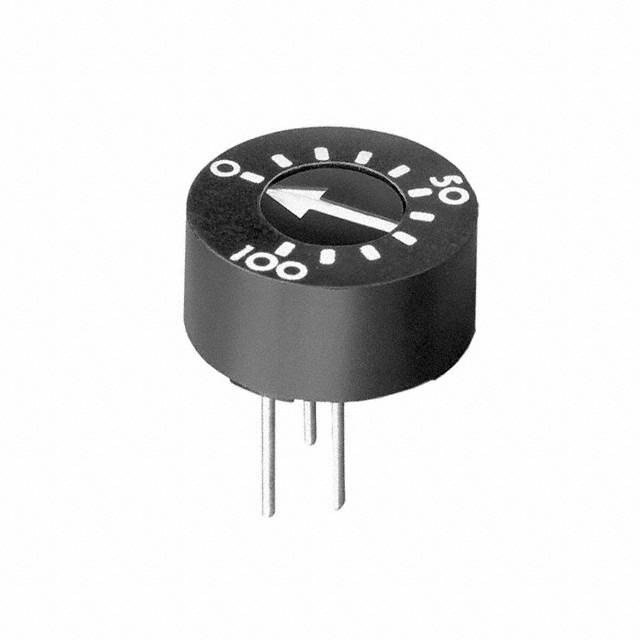

93 系列 1/2 英寸 直径 200 kOhm ±10 % 单圈 微调电位器
200 kOhms 1W PC Pins Through Hole Trimmer Potentiometer Cermet 1 Turn Top Adjustment
得捷:
TRIMMER 200K OHM 1W PC PIN TOP
艾睿:
Calibrate the resistance of a circuit with this 93PR200KLF potentiometer from BI Technologies TT electronics. This product has a resistance value of 200K Ohm. This part has a power rating of 1 W. Its temperature coefficient is ±100 ppm/°C. This device is made with cermet technology. The 93PR200KLF part has a pin termination style. This product is 6.35 mm tall with a diameter of 12.7 mm. It has a tolerance of 10%. This part has an operating temperature of -55 to 125 °C.
Chip1Stop:
Res Cermet Trimmer 200K Ohm 10% 1W 1Elec/1MechTurn 6.35mm 12.7 X 6.35mm Pin Thru-Hole Box
Verical:
Res Cermet Trimmer 200K Ohm 10% 1W 1Elec/1MechTurn 6.35mm 12.7 X 6.35mm Pin Thru-Hole Box
MASTER:
Res Cermet Trimmer 200K Ohm 10% 1W 1Elec/1MechTurn 6.35mm 12.7 X 6.35mm Pin Thru-Hole Box
Electro Sonic:
Res Cermet Trimmer 200K Ohm 10% 1W 1Elec/1MechTurn 6.35mm 12.7 X 6.35mm Pin Thru-Hole Box
