98311-57概述

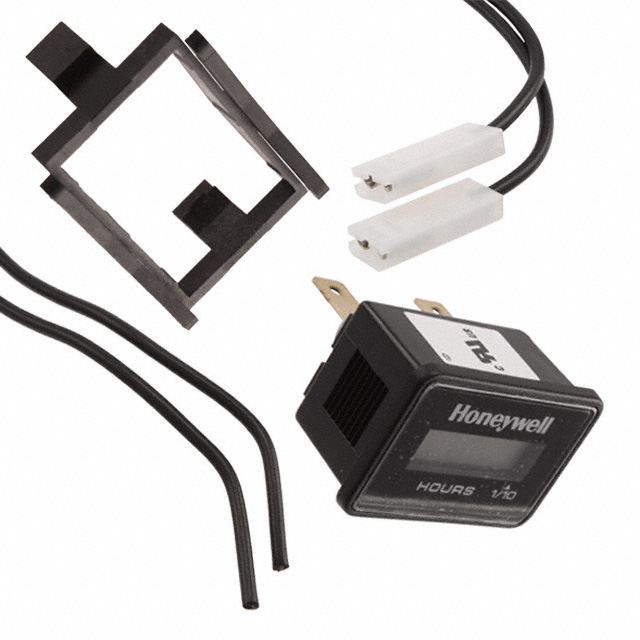

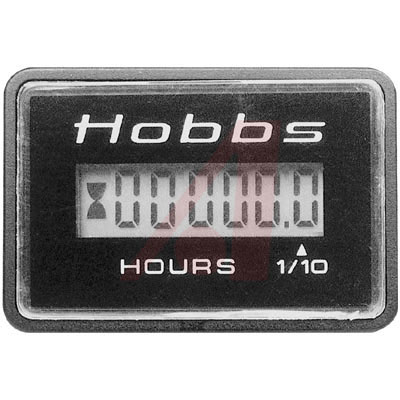

Hour Meter; LCD; 9 to 64VDC; 1.45in. L x 0.95in. W; Retainer Mount; Black

Hobbs has merged digital technology and rugged design into a state-of-the-art hour meter! These LCD hour meters feature a solid-stated electronic quartz movement, totally sealed case and very low power consumption.

* Operating Temperature Range: –40°F to +185°F –40°C to +85°C

* Storage Temperature Range: –40°F to +185°F –40°C to +85°C

* Power Consumption: <1 mA @ Rated Voltage

* Transient Voltage and Reverse Polarity Protected

* Shock and Vibration Resistant

* Standard Terminals: 1⁄4" Male Blade

* UL and CSA Certification Pending

* Running Indicator

* 6 mm 0.25" Numeral Height

98311-57中文资料参数规格
技术参数

工作温度Min -40 ℃

电源电压 9VDC ~ 64VDC

输入电压 9V ~ 64V

封装参数

安装方式 Panel

外形尺寸

长度 35.6 mm

宽度 25.4 mm

物理参数

颜色 Black

工作温度 40℃ ~ 85℃

其他

产品生命周期 Obsolete

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买98311-57
型号: 98311-57
描述:Hour Meter; LCD; 9 to 64VDC; 1.45in. L x 0.95in. W; Retainer Mount; Black
