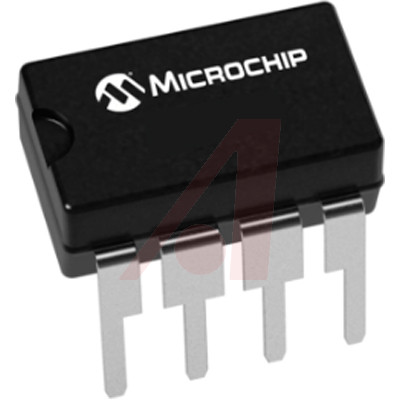

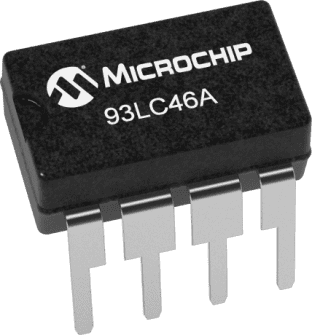

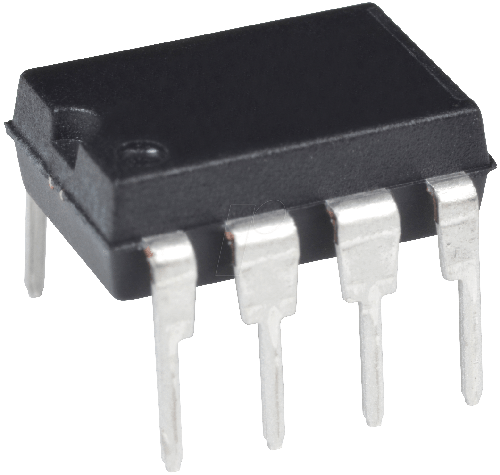

MICROCHIP 93LC46A-I/P EEPROM, Microwire, AEC-Q100, 1 Kbit, 128 x 8位, 3 MHz, 串行微丝, DIP, 8 引脚
**Features:**
* Automatic ERAL Before WRAL
* Self-Timed Erase and Write Cycle
* Power On/Off Data Protection Circuitry
* Sequential Read Function
* Industry Standard 3-Wire Serial I/O
得捷:
IC EEPROM 1KBIT MICROWIRE 8DIP
立创商城:
93LC46A I/P
e络盟:
EEPROM, Microwire, 1 Kbit, 128 x 8位, 串行Microwire, 3 MHz, DIP, 8 引脚
艾睿:
EEPROM Serial-Microwire 1K-bit 128 x 8 3.3V/5V 8-Pin PDIP Tube
Allied Electronics:
Microchip 93LC46A-I/P Serial EEPROM Memory, 1kb, 450ns, 2.5 to 5.5 V 8-Pin PDIP
Chip1Stop:
EEPROM Serial-Microwire 1K-bit 128 x 8 3.3V/5V 8-Pin PDIP Tube
TME:
Memory; EEPROM; Microwire; 128x8bit; 2.5÷5.5V; 2MHz; DIP8
Verical:
EEPROM Serial-Microwire 1K-bit 128 x 8 3.3V/5V 8-Pin PDIP Tube
Newark:
# MICROCHIP 93LC46A-I/P EEPROM, Microwire, 1 Kbit, 128 x 8bit, 3 MHz, DIP, 8 Pins
Win Source:
IC EEPROM 1KBIT 2MHZ 8DIP
频率 2 MHz
电源电压DC 5.00 V, 5.50 V max
工作电压 2.5V ~ 5.5V
供电电流 2 mA
针脚数 8
时钟频率 3 MHz
存取时间 100 ns
内存容量 125 B
输入电容 7 pF
存取时间Max 250 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Through Hole
引脚数 8
封装 PDIP-8
长度 0.4 in
高度 0.195 in
封装 PDIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
