MOLEX 92315-2610 预装配扁平电缆, 26路 100MM

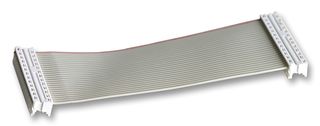

The is a 100mm 26-way natural Picoflex® Ribbon Cable Assembly with a female PF-50 IDT connector on each end. The 92315 series cable is made of PVC. The connector contacts are made of phosphor bronze. A strong one-piece upper housing provides excellent cable retention and is ideal for small circuit size applications. The high-reliability contact features a four-point interface with the cable and two points of contact between the header and receptacle. Picoflex also offers excellent polarization to both the PCB and between the female connector and header. It mates with 90325, 90800, 90779, 90715 and 90814 headers.
- .
- 250V Maximum voltage
- .
- 1.2A Maximum current per contact
极性 Female
线规 28.0 AWG
额定电压DC 250 V
额定电流 1.2 A
无卤素状态 Not Low Halogen
电路数 26
易燃性等级 UL 94 V-0
针脚数 26
芯数 26
额定电流Max 1.2A/触头
工作温度Max 105 ℃
工作温度Min -20 ℃
额定电压Max 250 V
额定电压 250 V
长度 0.1 m
脚长度 100 mm
电缆长度 100 mm
颜色 Natural
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 Consumer Electronics, Industrial, Automotive, Medical, 通信与网络, 消费电子产品, Communications & Networking, 工业, 车用, 医用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
