981-009-030R121

NORCOMP  981-009-030R121  连接器后壳, D Sub, 滑锁, ARMOR 981系列, DE, 90°, 锌合金主体

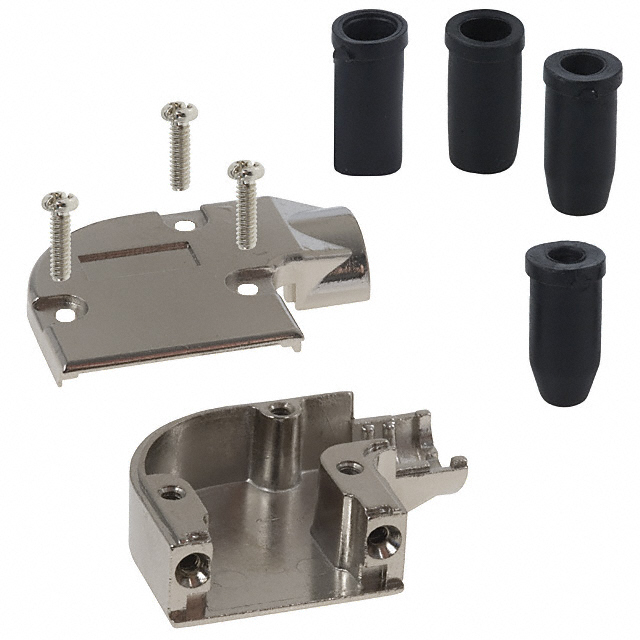

The ARMOR 981 series D-sub Backshell is designed for rugged/robust applications. It is features all metal die cast housing, this backshell offers high reliability performance for the most challenging design applications. It is available in 3 industry sizes/positions 9, 15 and 25 and die-cast for over 70dB shielding. The non-conductive grommet/strain relief is supplied to enhance shielding and provide proper strain relief.

.

Perimeter sealing lips for secure assembly

.

Die cast metal shells provide excellent EMI/RFI shielding

.

Plated with high quality nickel finish

.

Available in a variety of cable entries

.

Compression or mechanical strain reliefs

.

Various mating hardware available

.

Thumbscrews supplied with backshell

.

More robust design for those areas that need it

.

Perimeter sealing lips for secure sealing

.

4-40 Mating hardware supplied with backshell

.

Grommet tree supplied - various sizes

.

Nickel-plated steel hardware

.

UL94V-HB Flammability
