99-4221-110-04概述

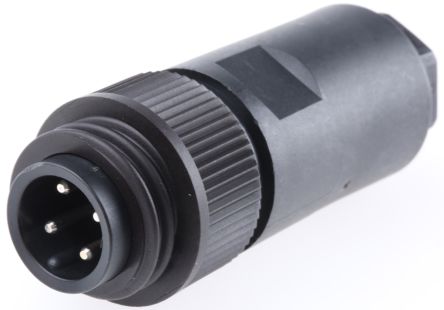

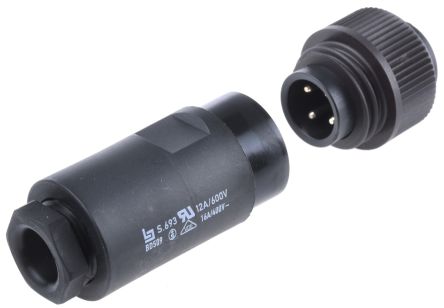

BINDER  99-4221-110-04  圆形连接器, 693系列, 插头, 4 触点, 公, 螺丝, 电缆安装

RD24 Male Cable Connector, PG11 with VDE, SEV, UL Approval - 692 and 693 Series

RD24 PG11 male cable connector with VDE, SEV and UL approval. This RD24 PG11 male cable connector has an 8 to 10 mm cable outlet and IP67 ingress protection.

### 认可

VDE, SEV, UL


欧时:
### RD24 Male Cable Connector, PG11 with VDE, SEV, UL Approval - 692 and 693 SeriesRD24 PG11 male cable connector with VDE, SEV and UL approval. This RD24 PG11 male cable connector has an 8 to 10 mm cable outlet and IP67 ingress protection.### 认可VDE, SEV, UL### Binder RD24 电源连接器 - 692 和 693 系列


e络盟:
圆形连接器, 693系列, 电缆安装插头, 4 触点, 螺丝销


Newark:
# BINDER  99-4221-110-04  Circular Connector, 693 Series, Plug, 4, Pin, Screw, Cable Mount


99-4221-110-04中文资料参数规格
技术参数

触点数 4

极性 Male

触点电镀 Silver

额定电压AC 400 V

额定电流 16 A

易燃性等级 UL 94 V-0

拔插次数 500

工作温度Max 100 ℃

工作温度Min -40 ℃

额定电压 400 V

封装参数

安装方式 Screw

物理参数

触点材质 Brass

外壳材质 Plastic

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

数据手册

在线购买99-4221-110-04
型号: 99-4221-110-04
制造商: Binder
描述:BINDER  99-4221-110-04  圆形连接器, 693系列, 插头, 4 触点, 公, 螺丝, 电缆安装
