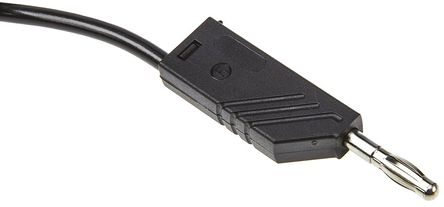

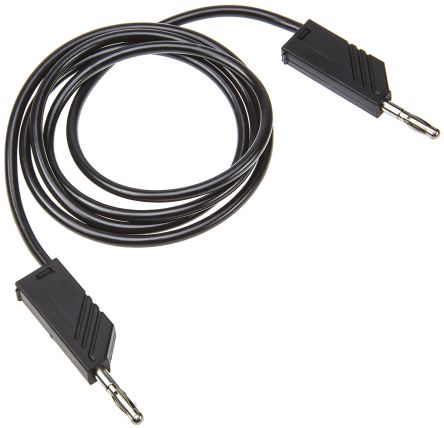

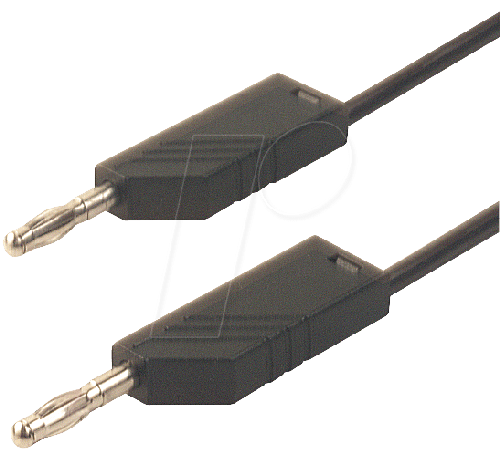

HIRSCHMANN TEST AND MEASUREMENT  934063100  测试线, 4mm香蕉插头至4mm香蕉插头, 黑色, 60 V, 32 A, 1 m

The is a Measuring Lead with 4mm diameter plug at both ends, caged spring and 4mm diameter socket for tower construction. Nickel-plated/gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.

.
Black housing
934063100中文资料参数规格
技术参数

额定电压DC 60.0 V

额定电流 32 A

接触电阻 12 mΩ

工作温度Max 70 ℃

工作温度Min -15 ℃

额定电压 60 V

外形尺寸

脚长度 1 m

电缆长度 1.00 m

物理参数

颜色 Black

工作温度 -15℃ ~ 70℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买934063100
型号: 934063100
制造商: Hirschmann
描述:HIRSCHMANN TEST AND MEASUREMENT  934063100  测试线, 4mm香蕉插头至4mm香蕉插头, 黑色, 60 V, 32 A, 1 m
