972355106

HIRSCHMANN TEST AND MEASUREMENT  972355106  插座, 4MM, 安全, 灰色

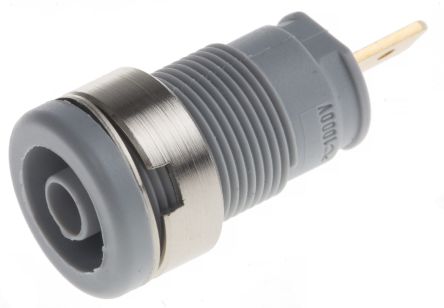

The is a 4mm grey Safety Built-in Socket, 25A/1000V rated, contact-protected with gold-plated brass 4.8 x 0.8mm tab connector termination of unsprung type contact with DIN 46 244. This SEB 2610 F4,8 Socket used for installation into switch panels and equipment chassis with wall thicknesses up to 6 mm, provide quick and uncomplicated connections.

.

Category III measurement according to IEC 61010 standard

.

Screw type mounting

.

-40 to +85°C Rated temperature range

.

PA housing

.

5mR Contact resistance
