97-3102A-18-1S

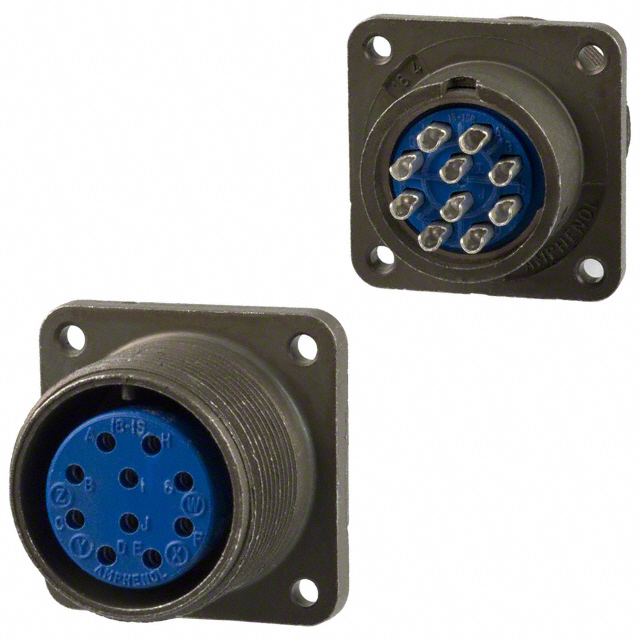

AMPHENOL  97-3102A-18-1S  圆形连接器, 97 Series, MIL-DTL-5015 Series Equivalent, 盒式安装插座, 10 触点, 焊接插座, 螺纹, 18-1

公司的 是一款 97 系列, MIL-DTL-5015系列相等盒式安装插座, 10 个触芯.97系列可选择多种外壳类型和尺寸, 采用实心或分体式结构.外壳部件由高级铝合金制成, 提供高强度和环境保护.该系列连接器可连接所有MIL-DTL-5015连接器.可配合现有97系列和SAE AS50151连接器.这款连接器经过验证, 适用于机床和焊接应用.

.

UL recognized E115497, CSA certified LR69183

.

Six shell styles, single key/keyway polarization

.

High reliability, moisture and corrosion resistant

.

100 mating cycles, IP67 environmental protection

.

Operating temperature range is -55°C to +125°C

.

Insulation resistance is > 5000Mohm at 25°C

.

Threaded coupling with hard dielectric inserts, diallyl phthalate blue colour insulator

.

Non-rotating contacts, cost effective, shock and vibration proof

.

Aluminium alloy body material with olive drab chromate over cadmium plating

.

Brass, copper alloy solder socket contacts with silver plating
