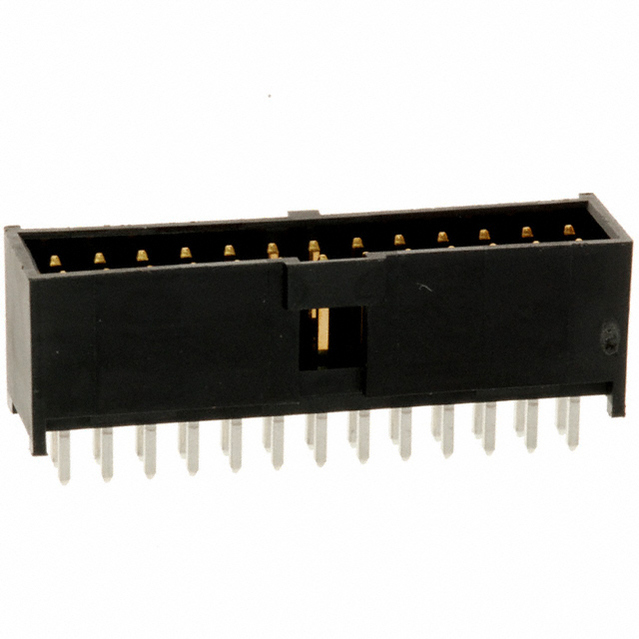

90130-1226

MOLEX  90130-1226  线至板连接器, 垂直, C-Grid III 90130系列, 26 触点, 针座, 2.54 mm, 通孔安装, 2 排

直向锁定针座

锁定外壳，适合与直向针座配合使用

欧时:
### 直向锁定针座锁定外壳，适合与直向针座配合使用 ### 2.54mm Molex C-Grid III 系列技术规格 --- 最大额定电流 A | 3 最大工作电压（V 交流/直流） | 350 绝缘电阻 MΩ | >1000 最大触点电阻 mΩ | 20 触点镀层 | 局部镀金镍 绝缘材料管座： | 15% 纤维填充聚酯 PBT 外壳： | 聚苯醚 管座引脚规格 mm | 0.64 平方 建议 PCB 孔直径尺寸 mm | 1

得捷:
CONN HEADER 26POS .100" STR GOLD

e络盟:
线至板连接器, 垂直, 2.54 mm, 26 触点, 针座, C-Grid III 90130系列, 通孔安装, 2 排

艾睿:
Conn Shrouded Header 4 Sides HDR 26 POS 2.54mm Solder ST Thru-Hole C-Grid III™ Tray

Allied Electronics:
Header 2.54mm, dual row, vert, shrouded, 26w

安富利:
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray

Chip1Stop:
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole C-Grid IIIâ„¢ Tray

Newark:
The 90130-1226 is a 26-circuit 2-row C-Grid III™ Vertical Header with gold-plated copper contacts and through hole termination. This 90130 series PCB header is made of polyester, mates with 90142 C-Grid III™ crimp housing, suitable for signal and wire-to-board applications. The C-Grid III has been developed to meet the latest industry requirements. Headers will accept both discrete wire and ribbon cable connectors. C-Grid III box contact design employs the same mating concept with all termination techniques. A uniform locking system on all contacts allows full interchangeability inside different housing styles. C-Grid III is fully compatible with the industry standard DIN41651 as well as the French norm HE-13/14. Moreover, it is fully intermateable/interchangeable with Molex's QF-50 product range.
