930727100

HIRSCHMANN TEST AND MEASUREMENT  930727100  插头, 4mm 黑色 5只/包

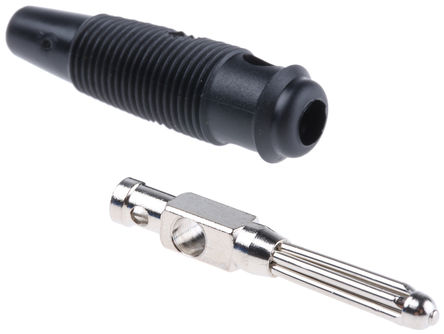

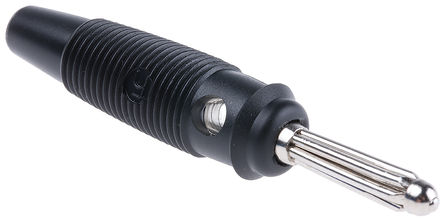

The is a 4mm black shatter-proof multiple-spring Wire Plug, 30A/30VAC/60VDC rated, nickel-plated brass pin contact, copper beryllium contact spring having solder as termination type. This BUELA 30 K multiple-spring wire plug provided with flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5mm².

.

Category I measurement according to IEC 61010 standard

.

-25 to +70°C Rated temperature range

.

PVC-P housing

.

3mR Contact resistance
