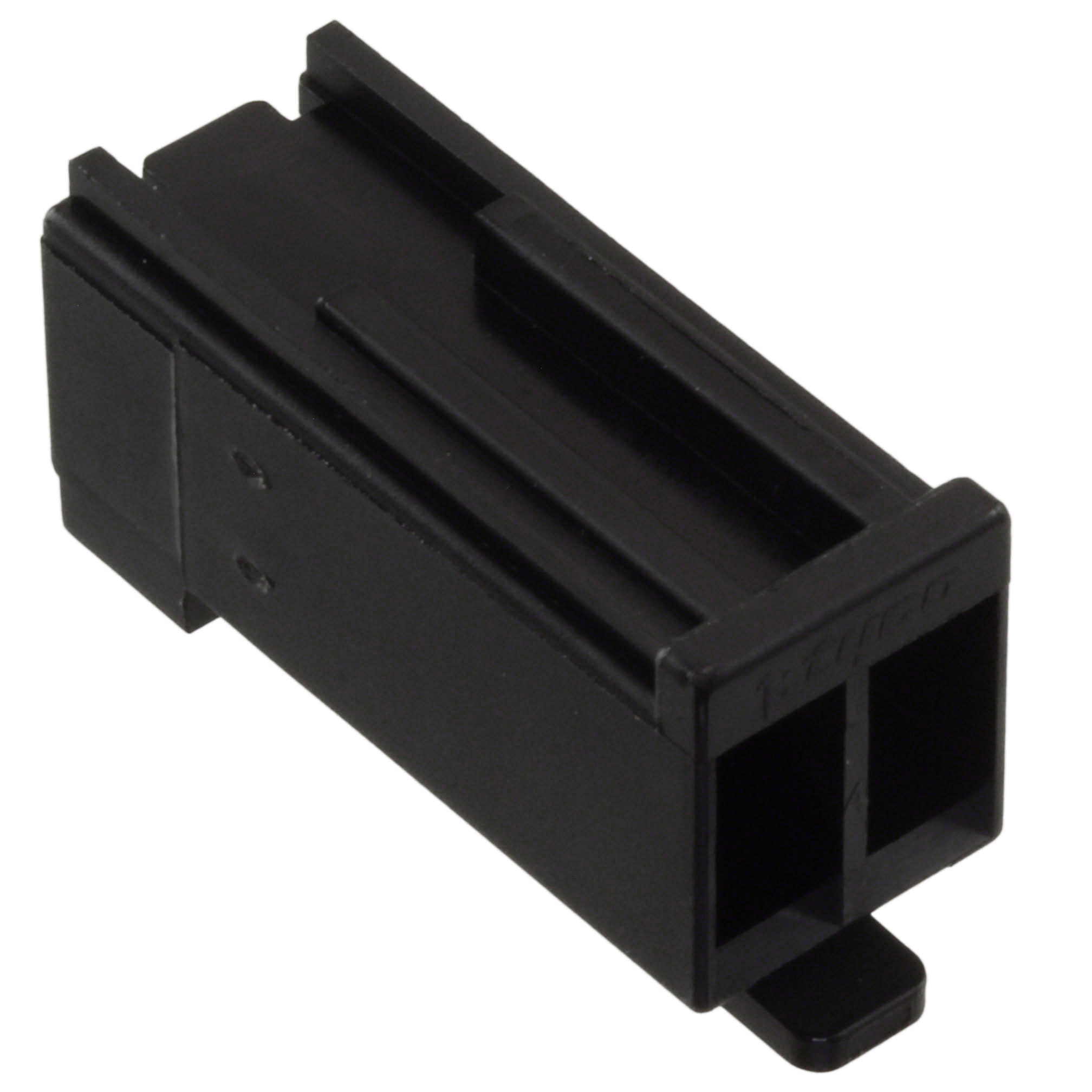

汽车连接器 2P ST-TIMER GEH
2 矩形 - 外壳 插座 黑色 0.197"(5.00mm)
得捷:
CONN RCPT HSG 2POS 5.00MM
立创商城:
928247-2
贸泽:
汽车连接器 2P ST-TIMER GEH
艾睿:
This 928247-2 discrete wire housing from TE Connectivity can also provide a locking mechanism for conditions where a lot of mechanical jarring is seen. This RCP connector has 2 RCP contacts. It has a maximum voltage rating of 220 V. This is a 1-row connector. It has a receptacle type gender. It has a straight body orientation. Its pitch is 5 mm. This device has a maximum current rating of 6 A/contact. This rectangle connector has an operating temperature of -40 to 105 °C. 928247-2 is housed in black polyamide 6/6. This product is 14.4 mm tall.
安富利:
Conn Housing RCP 2 POS 5mm Crimp ST Cable Mount
Verical:
Conn Housing RCP 2 POS 5mm Crimp ST Cable Mount Black Bag
MASTER:
Conn Housing RCP 2 POS 5mm Crimp ST Cable Mount Black Bag
Powell:
Standard Timer AMP RAST 5 Appliance Connectors
Online Components:
2P ST-TIMER GEH
Electro Sonic:
2P ST-TIMER GEH
触点数 2
排数 1
易燃性等级 UL 94 V-2
针脚数 2
额定电流Max 6A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 220 V
引脚数 2
封装 Housing
高度 14.4 mm
封装 Housing
外壳颜色 Black
颜色 Black
工作温度 -40℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bag
制造应用 Signal, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
