969973-4

AMP FROM TE CONNECTIVITY  969973-4  板至板连接, AMPMODU HV-100系列, 8 触点, 插座, 2.54 mm, 表面安装　, 2 排

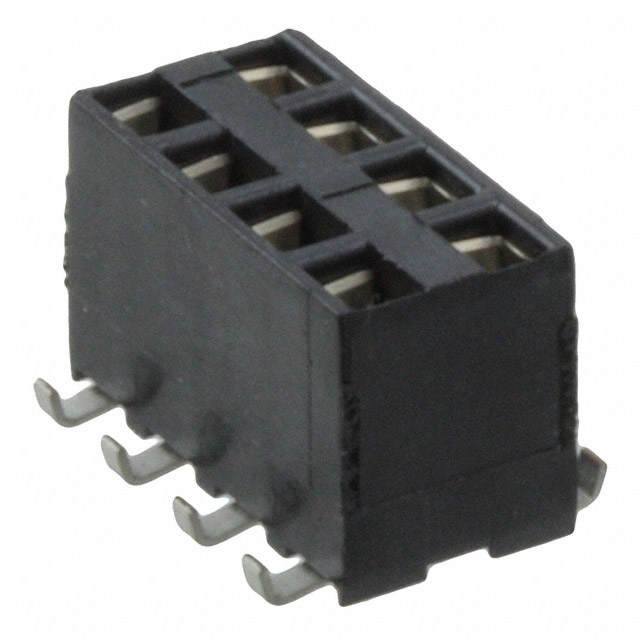

The HV-100 series standard vertical surface-mount Receptacle with socket type contacts. This AMPMODU HV-100 series receptacle has gold-plated phosphor bronze contacts, LCP liquid crystal polymer housing and tin over nickel solder tail contact plating.

.

Stackable

得捷:
CONN RCPT 8POS 0.1 GOLD SMD

贸泽:
集管和线壳 RECPT ASSY 2X04P HV-100

e络盟:
线至板连接器, 2.54 mm, 8 触点, 插座, AMPMODU HV-100系列, 表面安装　, 2 排

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip 969973-4 header connector from TE Connectivity. This RCP connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold. It has a receptacle type gender. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 2 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. 969973-4 is housed in liquid crystal polymer. This product is 7.65 mm deep. This connector has an operating temperature of -65 to 125 °C. It uses the solder termination method.

安富利:
Conn Socket Strip RCP 8 POS 2.54mm Solder ST SMD T/R

Verical:
Conn Socket Strip RCP 8 POS 2.54mm Solder ST SMD T/R

Newark:
# AMP - TE CONNECTIVITY  969973-4  Wire-To-Board Connector, AMPMODU HV-100 Series, Surface Mount, Receptacle, 8, 2.54 mm

Powell:
.100 inch AMPMODU Receptacles

Electro Sonic:
2x4P HV100 REC. CON, SMD, GOLD, BLISTER
