934099102

HIRSCHMANN TEST AND MEASUREMENT  934099102  插头

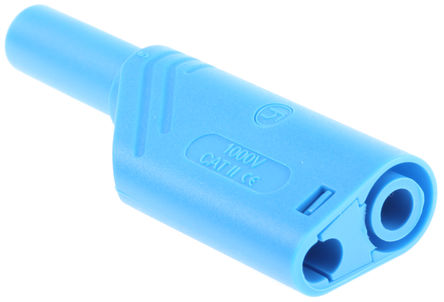

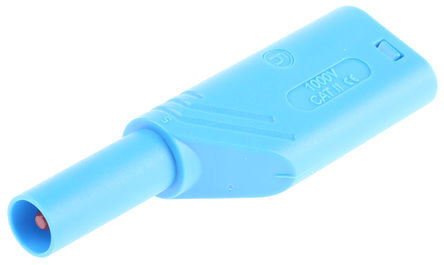

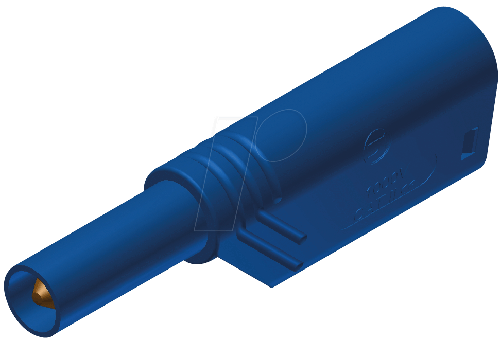

The is a 4mm blue Safety Plug, 24A/1000VAC/DC rated, nickel plated brass contact pin with copper-beryllium contact spring having screw type termination. This LAS S WS safety connector used for tower construction with screw connection for leads from 0.5 mm² to 1.5 mm², outer diameter of lead maximum 4.2mm. Plug 4mm with caged spring, rigid socket 4mm, 1000V system.

.

Category II measurement according to IEC 61010 standard

.

-15 to +70°C Rated temperature

.

PA housing

.

10mR Contact resistance
