927231-3

mm --- 线路数目 | A | B | C 2 | 5.6 | 10.8 | 9.8 3 | 5.6 | 15 | 14 3 | 9.8 | 11.8 | 9.8 4 | 12.3 | 12.3 | 9.8 6 | 14 | 11.8 | 9.8 9 | 14 | 16 | 14 12 | 16 | 18.2 | 14 15 | 22.4 | 16 | 14 20 | 43 | 12 | 9.8 ### 注图像仅为参考。### TE Connectivity 微型通用 MATE-N-LOK™ 系列

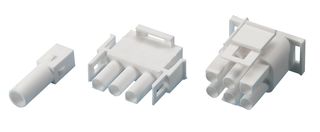

插座/插座外壳

可直接安装于允许线对线和线对板连接的自由电缆或面板。

接受公或母触点

完全极化外壳

尺寸 mm

---

线路数目 | A | B | C

2 | 5.6 | 10.8 | 9.8

3 | 5.6 | 15 | 14

3 | 9.8 | 11.8 | 9.8

4 | 12.3 | 12.3 | 9.8

6 | 14 | 11.8 | 9.8

9 | 14 | 16 | 14

12 | 16 | 18.2 | 14

15 | 22.4 | 16 | 14

20 | 43 | 12 | 9.8

### 注

图像仅为参考。

得捷:

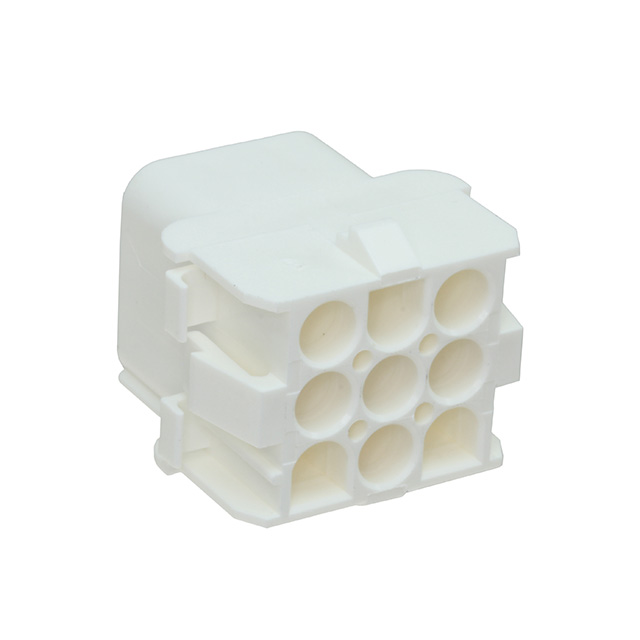

CONN RCPT HSG 9POS 6.35MM

欧时:

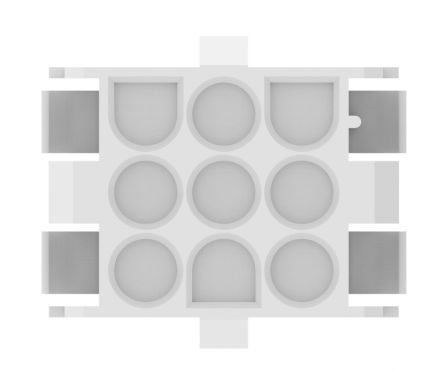

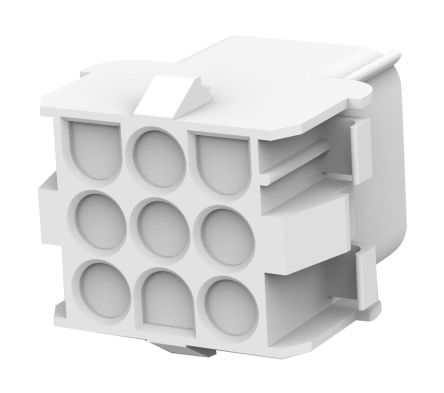

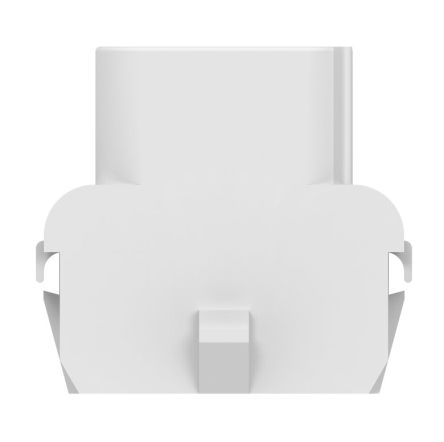

TE Connectivity 连接器外壳, Universal MATE-N-LOK 系列, 6.35mm节距, 3行, 9路 母 电缆安装

立创商城:
927231-3

贸泽:
管脚和插座连接器 HONHUS UMNL V0 9-P

e络盟:
连接器外壳, Universal MATE-N-LOK系列, 插座, 9 路, 6.35 mm, 通用Mate-N-Lok连接器

艾睿:
This 927231-3 discrete wire housing from TE Connectivity will house one or multiple wires and channels. This RCP connector has 9 RCP contacts. Its pitch is 6.35 mm. This is a 3-row connector. It has a receptacle type gender. It has a maximum voltage rating of 600 VAC. It has a straight body orientation. This device has a maximum current rating of 19 A/contact. 927231-3 is housed in red polyamide 6/6. This product is 29.7 mm long, 25.3 mm tall and 27.4 mm deep.

Allied Electronics:
Universal MATE-N-LOK Series 6.35mm Pitch 9 Way 3 Row Female Straight PCB Housing

安富利:
Conn Housing RCP 9 POS 6.35mm Crimp ST Cable Mount Individual

Chip1Stop:
Conn Housing RCP 9 POS 6.35mm Crimp ST Cable Mount Individual

TME:
Plug/socket; wire-wire; male/female; Universal MATE-N-LOK; PIN:9

Verical:
Conn Housing RCP 9 POS 6.35mm Crimp ST Cable Mount Red Bag/Box

Newark:
Connector Housing, Universal MATE-N-LOK Series, Receptacle, 9 Positions, 6.35 mm

MASTER:
UMNL 9 WAY CAP HSG

Electro Sonic:
HONHUS UMNL V0 9-P
