930176100

HIRSCHMANN TEST AND MEASUREMENT  930176100  面板插座, 4mm 黑色 5只/包

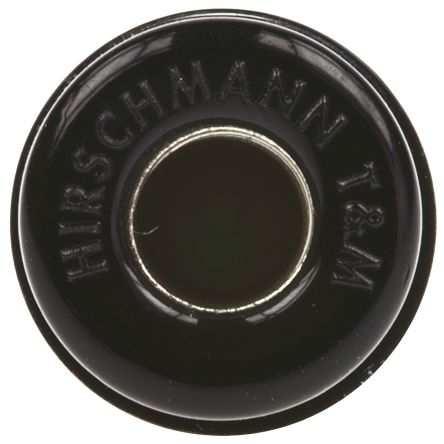

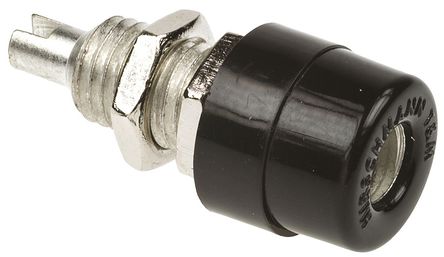

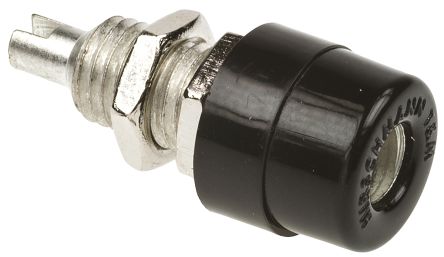

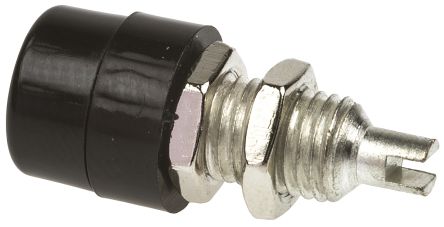

The BIL 20 series from are 4mm binding post sockets. These sockets with insulated head and ring are used for installation in equipment chassis and switch panels with wall thickness up to 2mm. It features 4mm diameter tin plated brass socket with solder connection and M6 mounting thread.

.

IEC 61010, CAT I measurement category

.

4mm diameter unsprung socket contact

.

Rated voltage of 30VAC / 60VDC

.

Rated current of 32A

.

Contact resistance is 5mohm

.

Screw mounting

.

UL 94 V-2 approved polyamide PA housing material

.

Temperature range from -25°C to 85°C

.

Available in variety of colours
