934098100

HIRSCHMANN TEST AND MEASUREMENT  934098100  插头, 安全 4MM 黑色

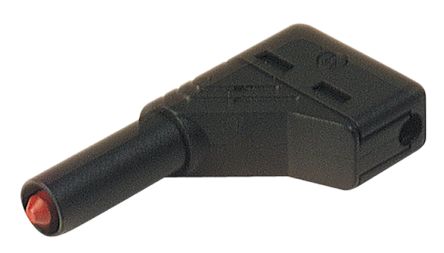

The is a 4mm black Safety Plug, 24A/1000VAC/DC rated, nickel plated brass pin contact with copper-beryllium contact spring having screw as termination type. This LAS S W safety angled connector with screw connection for leads from 0.5mm² to 1.5mm², outer diameter of lead maximum 4.2mm with caged spring.

.

Category III measurement according to IEC 61010 standard

.

-15 to +70°C Rated temperature

.

PA housing

.

10mR Contact resistance
