972354103

HIRSCHMANN TEST AND MEASUREMENT  972354103  插孔, 安全型, 4MM, 黄色

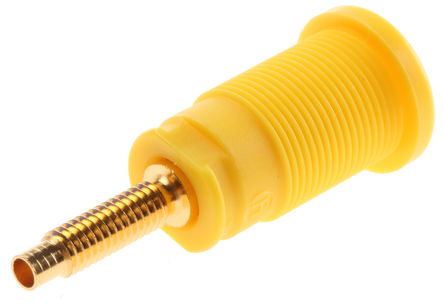

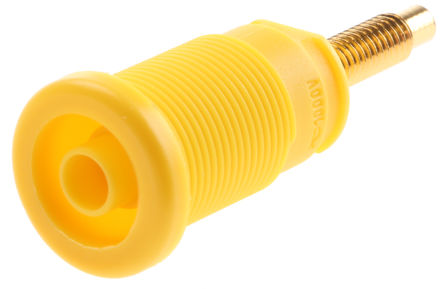

The is a 4mm yellow Safety Built-in Receptacle Socket, touch-protected with M4 thread/solder and solder termination unsprung contact type with gold-plated brass material, 12.2mm diameter installation hole. This SEB 2600 G M4 socket used for installation into switch panels and equipment chassis with wall thicknesses up to 6mm, provide quick and uncomplicated connections.

.

Category III measurement according to IEC 61010 standard

.

-40 to +80°C Rated temperature range

.

PA housing

.

5mR Contact resistance
