HIRSCHMANN TEST AND MEASUREMENT  934063701  测试线, 4mm香蕉插头至4mm香蕉插头, 红色, 60 V, 32 A, 1 m

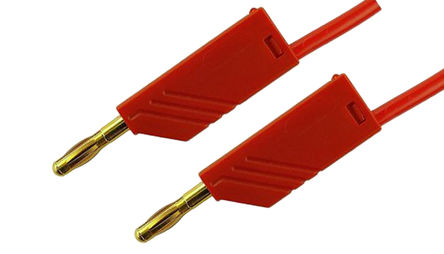

The is a 32A 30VAC/60VDC red Test Probe with gold contact surface and PA housing material. Measuring lead at either end 4mm diameter plug with caged spring and 4mm diameter socket for tower construction. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.

.

4mm Pin dimension

.

Pin spring loaded contact

.

12mR contact resistance

.

2.5mm² conductor

.

PVC cable material

.

Highly flexible lead

.

320 x 0.1mm wire stranding

.

UL94V-2 Flammability rating
