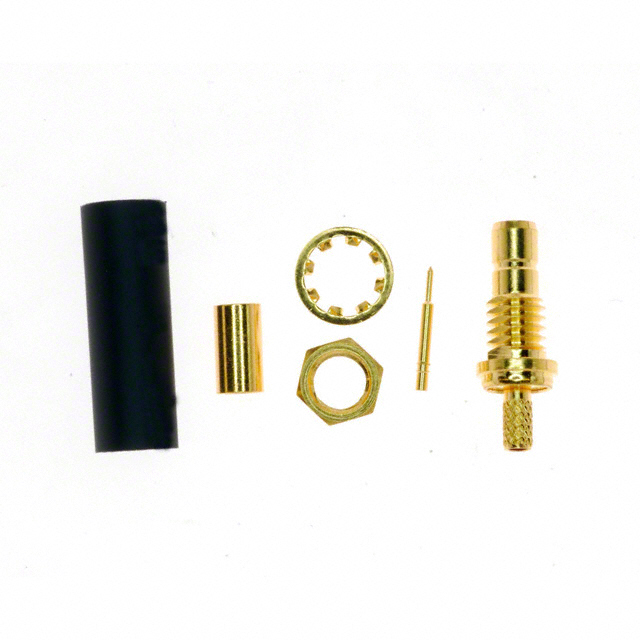

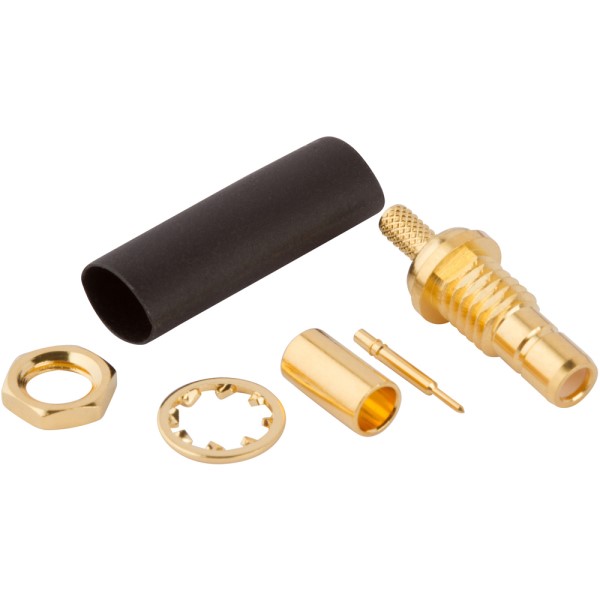

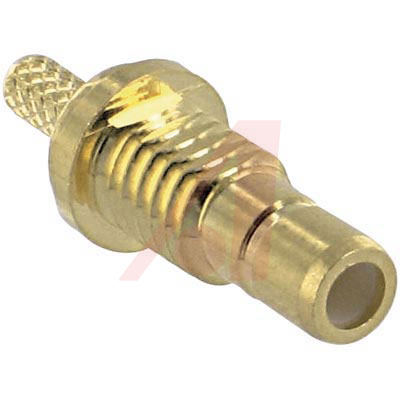

AMPHENOL RF 903-505J-51S 连接器, SMB直隔板同轴插口, 压接型
SMB connectors meet or exceed the requirements of MIL-C-39012 Series SMB. These subminiature connectors feature snap-on mating. 50 Ohm impedance voltage rating of 375 V peak. The bodies are brass with gold, or nickel plating. Contacts are gold plated. Insulators TFE.
得捷:
CONN SMB JACK STR 50 OHM CRIMP
贸泽:
RF Connectors / Coaxial Connectors BLHD JCK 316/174 GLD
艾睿:
Conn SMB 0Hz to 4GHz 50Ohm Solder ST Panel Mount RCP Gold
Allied Electronics:
connector, rf coaxial, smb str blkhd jack, crimp/solder, rg174, 179, 187, 188, 316, 50ohm
Chip1Stop:
Conn SMB RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold
Verical:
Conn SMB 0Hz to 4GHz 50Ohm Solder ST Panel Mount RCP Gold
Newark:
# AMPHENOL RF 903-505J-51S RF / Coaxial Connector, SMB Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, RG174, RG188A, RG316
MASTER:
RF Connector SMB Straight Crimp Jack for RG-174 RG-188 RG-316 Bulkhead 50 Ohm
Powell:
SMB Straight Crimp Jack for RG-174, RG-179, RG-187, RG-188, RG-316, Bulkhead, 50 Ohm
Online Components:
RF Connector SMB Straight Crimp Jack for RG-174 RG-188 RG-316 Bulkhead 50 Ohm
Electro Sonic:
RF Connector SMB Straight Crimp Jack for RG-174 RG-188 RG-316 Bulkhead 50 Ohm
