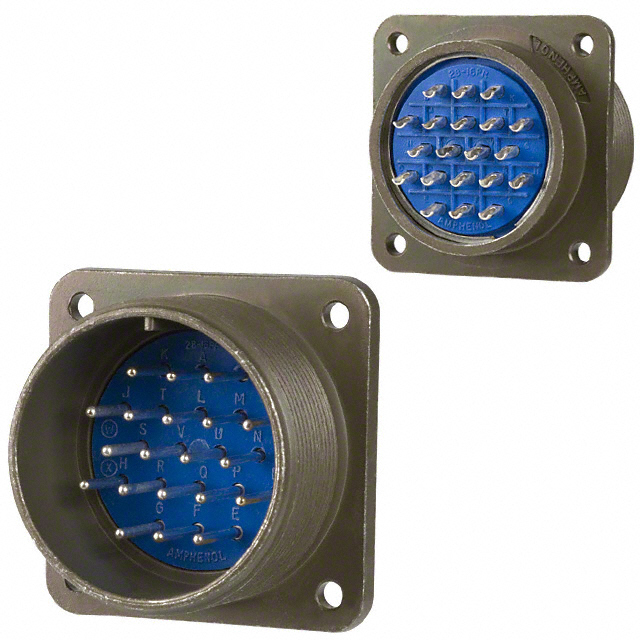

97-3102A-28-16P图片6
97-3102A-28-16P图片7
97-3102A-28-16P概述

AMPHENOL INDUSTRIAL  97-3102A-28-16P  圆形连接器, 尺寸28, 20路, 盒式

Circular 97 Series Threaded Connectors with Solder Contacts MIL-C-5015 Type

Circular 97 Series Threaded Connectors with Solder Contacts MIL-C-5015 Type

MS/Standard Cylindrical

with Solder Contacts MIL-C-5015 Series 1 Type

Accessories For 97 Series Connectors

97 Series Receptacles


得捷:
CONN RCPT MALE 20P SOLDER CUP


贸泽:
Circular MIL Spec Connector


e络盟:
圆形连接器, 尺寸28, 20路, 盒式


Chip1Stop:
Conn Standard Cylindrical PIN 20 POS Solder Cup ST Box Mount 20 Terminal 1 Port Automotive


Newark:
# AMPHENOL INDUSTRIAL  97-3102A-28-16P  Circular Connector, 97 Series, Box Mount Receptacle, 20 Contacts, Solder Pin, Threaded, 28-16


Electro Sonic:
Conn Cylindrical Circular PIN 20 POS Solder Cup ST Box Mount 20 Terminal 1 Port Automotive


97-3102A-28-16P中文资料参数规格
技术参数

触点数 20

极性 Male

触点电镀 Silver

额定电压DC 700 V

额定电流 13 A

针脚数 20

额定电压 500VAC, 700VDC

封装参数

安装方式 Solder, Panel, Box

外形尺寸

长度 34.92 mm

宽度 50.8 mm

高度 50.8 mm

物理参数

颜色 Olive

触点材质 Brass, Copper Alloy

绝缘材质 Plastic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

REACH SVHC标准 No SVHC

军工级 Yes

数据手册
