BERNSTEIN WERKZEUGFABRIK 9-205 转动式台虎钳, 小号

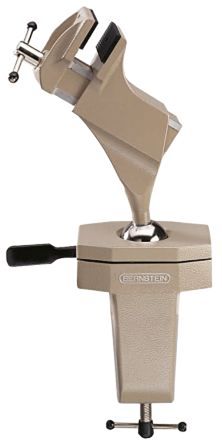

The from is a SPANNFIX screw-on clamping vice. It is used for work benches with maximum table thickness of 80mm. This small vice with ball and socket joint can be mounted quickly and easily onto work bench or table. Slight pressure on lever is sufficient and clamped workpiece can be moved into any suitable position. Constructed on ball and socket joints, this device can rotate easily in all directions and capable of being set securely with maximum working capacity by simple operation. A set screw below the ball socket allows an individual adjusting of ball power. This device simplifies operations in precision engineering, labouratories, mechanical and electronical workshops as well as in different medical areas.
- .
- Clamping pressure of 1.470N
- .
- Clamping capacity of 70mm
- .
- Clamping depth of 38mm
- .
- Jaw width of 50mm
- .
- Weight of 1.450Kg
