934063109

MLN 2.5 可堆叠 4mm 测量引线Hirschmann 测试和测量 MLN 2.5，4mm 测量引线在任何一端具有直径为 4mm 的插头，带笼式弹簧和直径为 4mm 的插座，用于塔结构。 这些测量和测试引线具有一个镀镍或镀金铜铍触点弹簧，柔性好，双绝缘绞合引线和防碎裂套管。 测试引线电缆，内置颜色指示灯，易于通过不同颜色的绝缘内核标识绝缘损坏。额定电压 30 V 交流/60 V 直流 额定电流 32A CAT I PVC 绝缘 股线 320 x 0.10mm 触点电阻 12mΩ 100cm 20mΩ 200cm ### 注以 7** 结尾的所有制造部件号均为镀金型号。### 4 mm Hirschmann技术参数 --- 触点材料 | 镀镍黄铜 额定电压 | 60Vdc（除非另有说明） 额定电流 | 16A（除非另有说明）

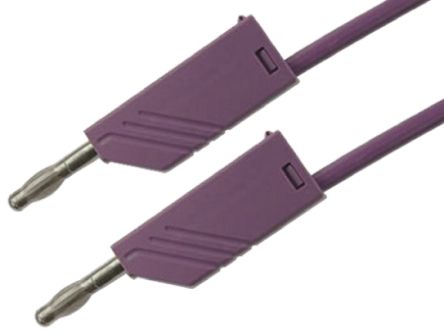

The is a Measuring Lead with 4mm diameter plug at both ends, caged spring and 4mm diameter socket for tower construction. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.

.

MLN 100/2.5 type

.

Rated voltage: 30VAC / 60VDC

.

Polyamide housing

.

UL94V-2 Flammability rating only valid for basic material of housing

.

12mR Contact resistance

.

-15°C to +70°C Temperature range
