99 0475 100 07

BINDER  99 0475 100 07  圆形连接器, 711系列, 插头, 7 触点, 公, 焊接, 电缆安装

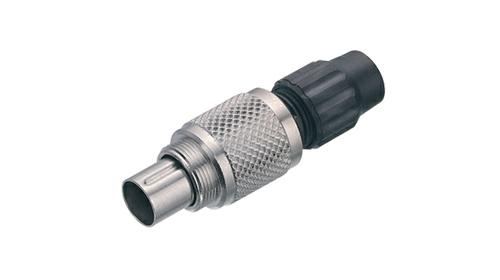

The is a 7-contact 125V/1A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA UL94V-0 contact body and PA UL94VH-B housing. The 711 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 26AWG 0.14mm² wire, 3 to 4mm cable outlet. The housing has an integrated strain relief for added strength.

.

1500V Rated impulse voltage

.

* >500 mating cycles Mechanical operation

.

IP40 Protection rating
