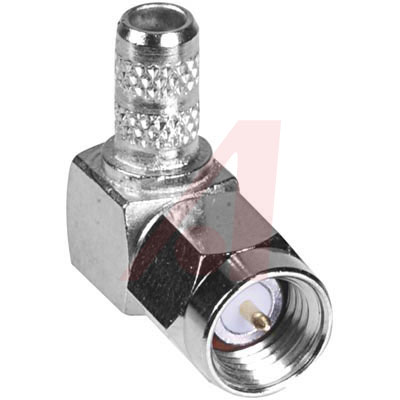

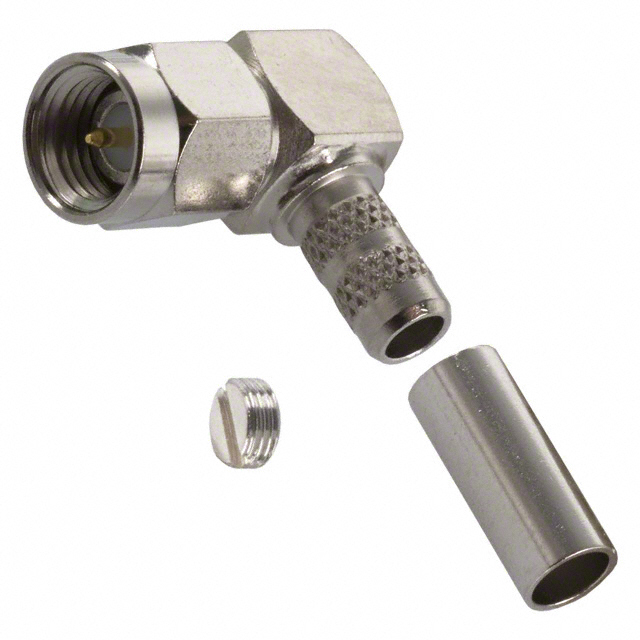

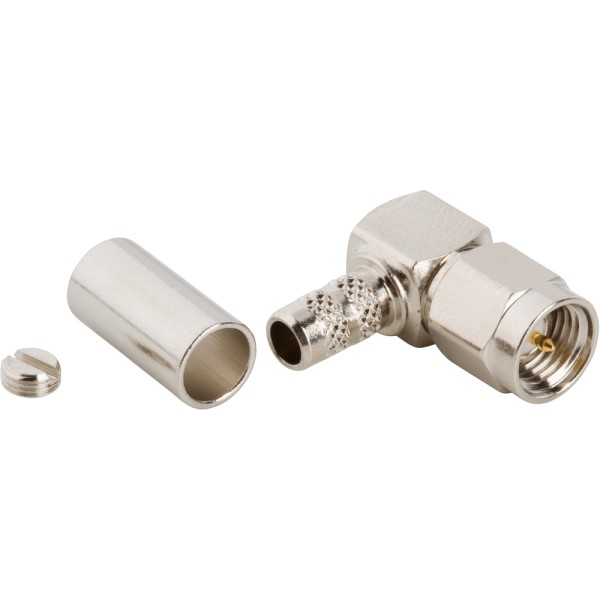

AMPHENOL RF 901-9880-RFX 连接器, SMA压接直角同轴插头
50 Ohm impedance. For applications where stainless steel construction is not required. Can be mated with all connectors, which meet military specification mating diameter. 得捷:
CONN SMA PLUG R/A 50 OHM SOLDER
贸泽:
RF连接器/同轴连接器 R/A PLG 58 141 Ni LMR195 BELDEN 7806A
e络盟:
连接器, SMA压接直角同轴插头
艾睿:
Conn SMA PL 0Hz to 18GHz 50Ohm Solder RA Cable Mount Gold
Allied Electronics:
connector, rf coaxial, sma rt angle plug, crimp/solder, for rg58 cable, nickel plt
Chip1Stop:
Conn SMA PL 0Hz to 18GHz 50Ohm Solder RA Cable Mount Gold
Verical:
Conn SMA 0Hz to 12.4GHz 50Ohm Solder RA Cable Mount PL Gold
Newark:
# AMPHENOL RF 901-9880-RFX RF / Coaxial Connector, SMA Coaxial, Right Angle Plug, Solder, 50 ohm
MASTER:
RF Connector SMA Right Angle Crimp Plug for RG-58 50 Ohm
Powell:
SMA Right Angle Crimp Plug for RG-58, 50 Ohm
Online Components:
RF Connector SMA Right Angle Crimp Plug for RG-58 50 Ohm
Electro Sonic:
RF Connector SMA Right Angle Crimp Plug for RG-58 50 Ohm
极性 Male
触点电镀 Gold
频率 12.4 GHz
绝缘电阻 5000 MΩ
拔插次数 100
工作温度Max 165 ℃
工作温度Min -65 ℃
额定电压 500 V
安装方式 Surface Mount
封装 SMA
长度 17.1 mm
封装 SMA
外壳颜色 Silver
触点材质 Brass
介质材料 Tetrafluoroethylene TFE
工作温度 -65℃ ~ 165℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694010
