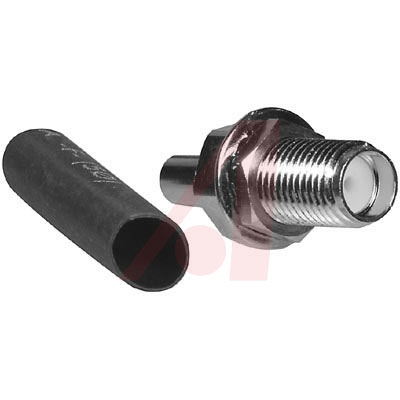

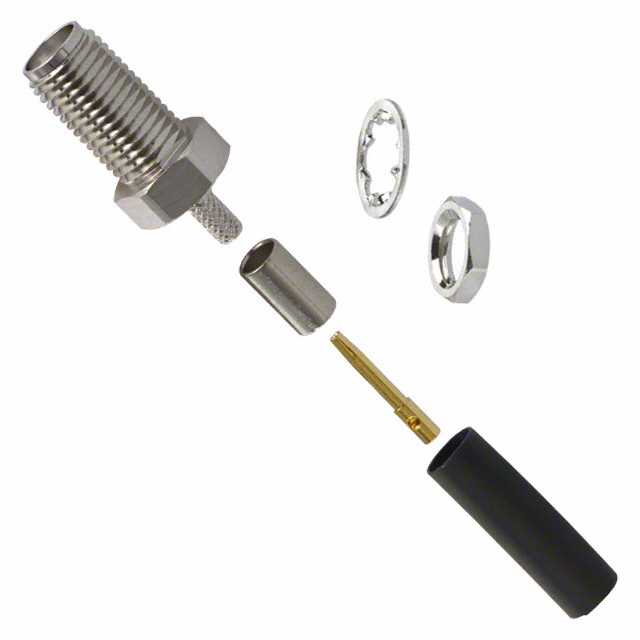

901-9879-RFX

Conn SMA RCP 0Hz to 18GHz 50Ω Crimp ST Panel Mount Gold

50 Ohm impedance. For applications where stainless steel construction is not required. Can be mated with all connectors, which meet military specification mating diameter.

.

*Frequency:** 0-12.4 GHz for flexible cable **Voltage:** 500 V peak — RG58, 141, 142; 375 V peak — RG174, 188, 316. Bodies, coupling nuts and other metal parts are brass and are either gold or nickel-plated. Center contacts are gold plated. Insulators are TFE fluorocarbon.

得捷:
CONN SMA JACK STR 50 OHM SOLDER

艾睿:
Conn SMA 0Hz to 12.4GHz 50Ohm Solder ST Panel Mount RCP Gold

Allied Electronics:
connector, rf coaxial, sma bulkhead jack, crimp/solder, rg174, 188, 316, nickel plt

安富利:
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Panel Mount Gold

Chip1Stop:
Conn SMA RCP 0Hz to 18GHz 50Ohm Crimp ST Panel Mount Gold

Verical:
Conn SMA 0Hz to 12.4GHz 50Ohm Solder ST Panel Mount RCP Gold

Newark:
# AMPHENOL RF  901-9879-RFX  RF / Coaxial Connector, SMA Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, RG174, RG188A, RG316

MASTER:
RF Connector SMA Straight Crimp Jack for RG-174 RG-188 RG-316 Bulkhead 50 Ohm

Powell:
SMA Straight Crimp Jack for RG-174, RG-188, RG-316, Bulkhead, 50 Ohm

Online Components:
RF Connector SMA Straight Crimp Jack for RG-174 RG-188 RG-316 Bulkhead 50 Ohm

Electro Sonic:
RF Connector SMA Straight Crimp Jack for RG-174 RG-188 RG-316 Bulkhead 50 Ohm
