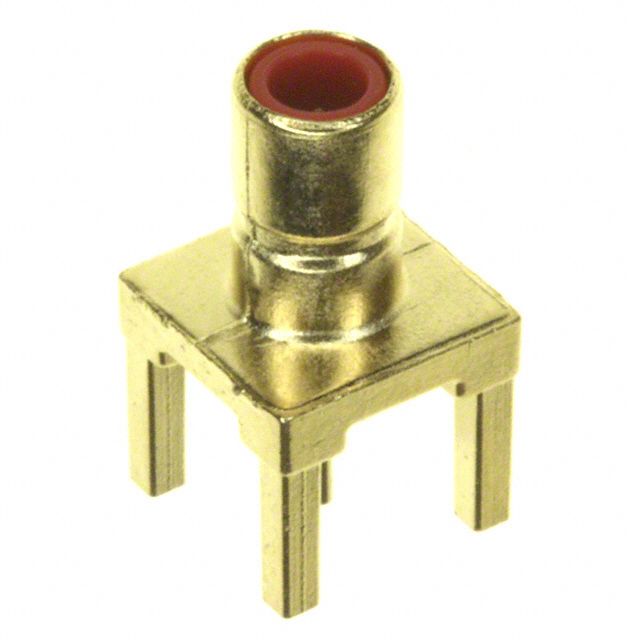

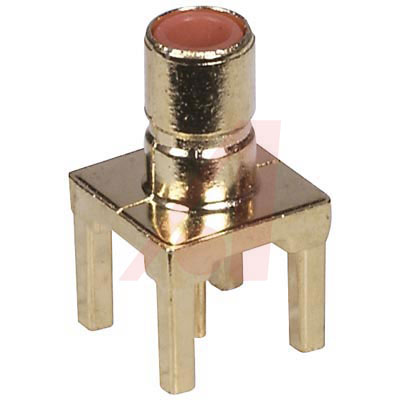

903-512J-71P

Conn SMB RCP 0Hz to 4GHz 75Ω Solder ST Thru-Hole Gold

Easily identified by their red teflon insulators.

.

*Frequency:** 0-4 GHz with low reflection. **Voltage Rating for RG-188/U Cables:** 335 V at sea level; 85 V at 70,000 feet. **Materials:** Bodies — brass or zinc, gold or nickel plated; Center contacts — beryllium copper, gold plated; Outer contact — nickel or gold plated; Insulators — TFE, red for I.D.; Crimp ferrules — annealed copper alloy. **Mating:** Snap-on coupling.

得捷:
CONN SMB JACK STR 75 OHM PCB

艾睿:
Conn SMB 0Hz to 4GHz 75Ohm Solder ST Thru-Hole RCP Gold

Allied Electronics:
connector, rf coaxial, smb 75 ohm pcb jack recept, 4 legs, blunt post terminal

Chip1Stop:
Conn SMB RCP 0Hz to 4GHz 75Ohm Solder ST Thru-Hole Gold

Verical:
Conn SMB 0Hz to 4GHz 75Ohm Solder ST Thru-Hole RCP Gold

Newark:
# AMPHENOL RF  903-512J-71P  RF / Coaxial Connector, SMB Coaxial, Straight Jack, Solder, 75 ohm, Beryllium Copper

Powell:
SMB Straight PCB Jack, 75 Ohm

Electro Sonic:
RF Connector Mini-SMB Straight PCB Jack 75 Ohm
